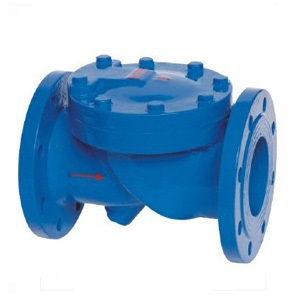

HC44X rubber disc swing check valve

HC44X rubber disc swing check valve Product introduction

HC44X rubber disc swing check valve is composed of valve body, valve cover, disc and spring, etc. HC44X rubber disc swing check valve is mainly used for water supply and drainage system, petroleum, chemical and other industrial sectors of the pipeline outlet to prevent medium countercurrent. Because the sealing ring of the product is designed by inclined design, the closing time is short, and the water hammer pressure can be reduced. HC44X rubber disc swing check valve disc is made of NBR and steel plate by high temperature pressing. It is erosion resistant and has good sealing performance. HC44X rubber disc swing check valvehas simple structure, easy maintenance, maintenance and transportation.

HC44X rubber disc swing check valve Main dimension

DN)	L	H
40	165	180
50	200	190
65	215	210
80	240	230
100	290	250
125	330	280
150	355	315
200	500	370
250	620	430
300	700	475
350	785	550
400	915	600
