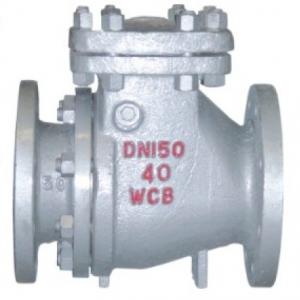

Slag discharge check valve Product introduction

 Slag discharge check valve

Slag discharge check valve Technical parameters

型号
公称压力PN(MPa)
试验压力Ps(MPa)
工作温度
(℃)
工作压力PN(MPa)
适用介质
强度
密封
PH44H-10C
1.0
1.5
1.1
≤200
1.0
灰渣水混合物,渣水比≥1:6,最大粒度≤50mm
PH44H-16C
1.6
2.4
1.76
1.6
PH44H-25
2.5
3.8
2.8
2.5

Slag discharge check valve Main part material

零件名称
阀体
阀盖
阀座
阀瓣
材料
WCB
WCB+耐磨钢
25+耐磨钢

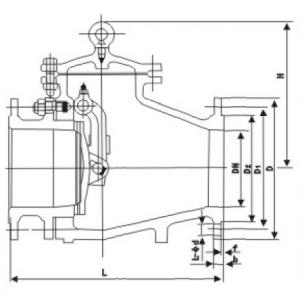

Slag discharge check valve Main dimension

型号
公称通径DN
主要外形尺寸及连接尺寸(mm)
重量(kg)
L
D
D1
D2
Z-Φd
b
f
H
PH44H
-10C
80
241
200
160
132
8-Φ18
20
3
260
48
100
292
220
180
156
8-Φ18
20
3
270
63
150
356
285
240
212
8-Φ22
22
3
290
120
200
495
340
295
268
8-Φ22
22
3
345
200
250
622
395
350
320
12-Φ22
24
3
412
250
300
698
445
400
370
12-Φ22
26
3
468
320
350
787
505
460
430
16-Φ22
28
4
524
400
400
900
565
515
482
16-Φ26
30
4
600
517
450
918
615
565
532
20-Φ26
32
4
670
610
500
978
670
620
585
20-Φ26
34
4
750
705
PH44H
-16C
80
241
200
160
132
8-Φ18
20
3
260
48
100
292
220
180
156
8-Φ18
20
3
270
63
150
356
285
240
212
8-Φ22
24
3
290
130
200
495
340
295
268
12-Φ22
24
3
345
210
250
622
405
355
320
12-Φ26
26
3
412
260
300
698
460
410
370
12-Φ26
28
4
468
330
350
787
520
470
429
16-Φ26
30
4
524
415
400
900
580
525
480
16-Φ30
32
4
600
532
450
918
640
585
548
20-Φ30
34
4
670
625
500
978
715
650
609
20-Φ30
36
4
750
720
PH44H-25
80
318
200
160
132
8-Φ18
24
3
260
48
100
356
235
190
156
8-Φ22
24
3
270
65
150
444
300
250
212
8-Φ26
28
3
290
140
200
535
360
310
278
12-Φ26
30
3
345
230
250
622
425
370
335
12-Φ30
32
4
412
280
300
711
485
430
390
16-Φ30
34
4
648
350
350
838
555
490
450
16-Φ33
38
4
524
440
400
864
620
550
505
16-Φ36
40
4
600
550
450
978
670
600
555
20-Φ36
42
4
670
650
500
1016
730
660
615
20-Φ36
44
4
750
745
