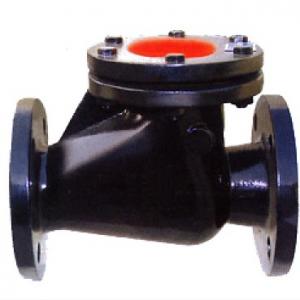

H44T-10 Cast iron swing check valve

H44T-10 Cast iron swing check valve Product introduction

H44T-10 Cast iron swing check valve manufacturer, factory and supplier. H44T-10 Cast iron swing check valve is cast iron body, brass seat design, swing type, automatic non-return valve. H44T-10 Cast iron swing check valve is used to secure one direction flow and prevent backflow in the water supply system. H44T-10 Cast iron swing check valve eliminates pressure surge upon pump stopping without vibration and slamming noise.

H44T-10 Cast iron swing check valve specification:

Medium applicable	Water, Oil etc.
Main material	Cast iron, etc
Temperature applicable	≤120ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	DN15-DN1000, 1/2"- 40"
Flange Dimension	GB/T 9119 or other standards conforming to the requirements
Face to Face Length	GB/T 12221 or others

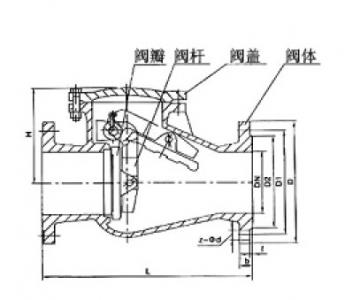

H44T-10 Cast iron swing check valve Main dimension

Type	DN（mm）	Dimension（mm）							Weight（kg）
Type	DN（mm）	L	D	D1	D2	b-f	Z-Φd	H	Weight（kg）
H44T-10	40	200	145	110	85	18-3	4-18	114	10
	50	230	160	125	100	20-3	4-18	128	14
	65	290	180	145	120	20-3	4-18	129	18
	80	310	195	160	135	22-3	4-18	152	26
	100	350	215	180	155	22-3	8-18	159	30.5
	125	400	245	210	185	24-3	8-18	188	48
	150	480	280	240	210	24-3	8-23	224	66
	200	495	335	295	265	26-3	26-3	252	95
	250	622	398	350	320	28-3	28-3	285	142
	300	698	440	400	368	28-4	28-4	351	200

H44T-10 Cast iron swing check valve Product order instruction
