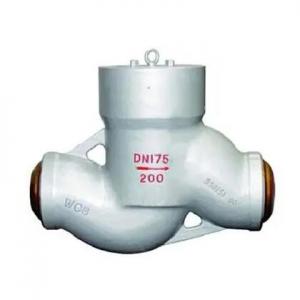

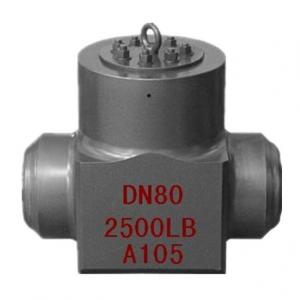

Pressure seal bonnet piston check valve

Pressure seal bonnet piston check valve Product introduction

Pressure seal bonnet piston check valve manufacture, factory and supplier. Pressure seal bonnet piston check valve designed for high-pressure applications and easy maintenance in the field; intended for horizontal pipe runs. Pressure seal bonnet piston check valve designed for fast check valve action with maximum service life in the compact pressure seal configuration. Pressure seal bonnet piston check valve is suited for moderately high velocity applications. For optimum performance, however, these valves should operate with a flow range sufficient to hold the valve open fully, but not so high that it produces excessive turbulence and pressure drop. Minimize the velocity of reverse flow and therefore slamming in high pressure steam applications.

Pressure seal bonnet piston check valve specification:

Name: Pressure Seal Piston Check Valve

Structure: Pressure seal bonnet

Body: Casting Steel or Forged steel

Trim: API 600 Trim No. 1, 2, 5, 9, 10, 12

Trim Mat.: F6, 304, 410 Hard Faced, F6-HFS, 316, Monel

Design Pressure: Fully Rated Per ASME B16.34

Diffrential Pressure: Full Differential Pressure

Ends: Flanged, Welded End

Rating: ASME Class 900-Class 2500

Size: 1/2-24 Inch (DN15-DN600)
