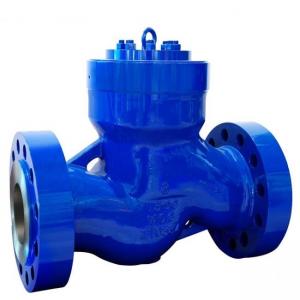

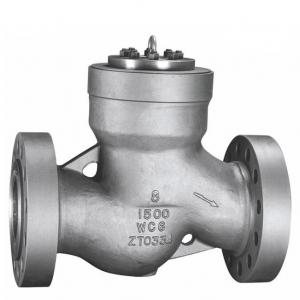

High pressure pressure seal check valve Product introduction

　High pressure pressure seal check valve manufacture, factory and supplier. High pressure pressure seal check valve can be swing and lift structure, which is designed for high-pressure applications and easy maintenance in the field; intended for horizontal pipe runs. High pressure pressure seal check valve designed for fast check valve action with maximum service life in the compact pressure seal configuration. High pressure pressure seal check valve is suited for moderately high velocity applications.For optimum performance, however, these valves should operate with a flow range sufficient to hold the valve open fully, but not so high that it produces excessive turbulence and pressure drop. Minimize the velocity of reverse flow and therefore slamming in high pressure steam applications.

High pressure pressure seal check valve specification:

Name: High Pressure Pressure Seal Check Valve

Structure: Pressure seal bonnet

Body: Casting Steel or Forged steel

Trim: API 600 Trim No. 1, 2, 5, 9, 10, 12

Trim Mat.: F6, 304, 410 Hard Faced, F6-HFS, 316, Monel

Design Pressure: Fully Rated Per ASME B16.34

Diffrential Pressure: Full Differential Pressure

Ends: Flanged, Welded End

Rating: ASME Class 900-Class 2500

Size: 1/2-24 Inch (DN15-DN600)
