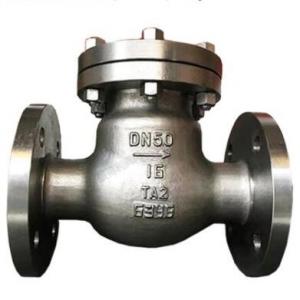

China Titanium Swing Check Valve

China Titanium Swing Check ValveChina Titanium Swing Check Valve
China Titanium Swing Check Valve

China Titanium Swing Check Valve Product introduction

 China Titanium swing check valve manufacturer,factory and supplier. Titanium swing check valve is widely used in aviation, space development, ocean engineering, petroleum, chemical, light industry, food processing, metallurgy, electric power, medicine and health, instrumentation and other industry sectors of titanium and titanium alloy valve corrosion resistance characteristics and applications: Titanium swing check valve in the atmosphere, fresh water, sea water, high temperature water steam, almost no corrosion; Titanium check valve is very corrosion resistant in alkaline media; Titanium swing check valve in chloride ion (CI) resistance is very strong, with excellent chloride ion corrosion resistance; Titanium valves in aqua regia, sodium hypochlorite. Chlorine water, wet chlorine gas and other media have good corrosion resistance; The corrosion resistance of titanium in organic acids depends on the reducibility or oxidation of the acid. The corrosion resistance of titanium check valve in reducing acid depends on whether the medium has corrosion inhibitor.

China Titanium swing check valve specification:
Body material: TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4
Nominal diameter:1/2"~24"(DN15~DN600)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500 (PN16~PN420)
Working temperature:-29ºC~+315ºC


China Titanium swing check valve Application :

  • Titanium swing check valve not only good corrosion resistance, but also light weight, high mechanical strength.
  • Titanium swing check valve in the atmosphere, fresh water, sea water, high temperature steam almost no corrosion.
  • Titanium valve in aqua regia, chlorine water, hypochlorous acid, wet chlorine and other media have a good corrosion resistance.
  • Titanium swing check valve is also very resistant to corrosion in alkaline media.
  • Titanium swing check valve has very strong chloride ion (CI) resistance and excellent chloride ion corrosion resistance.
  • The corrosion resistance of titanium swing check valve in organic acid depends on the size of reducing or oxidizing acid.
  • Corrosion resistance of titanium swing check valve in reducing acid depends on whether there is corrosion inhibitor in the medium.
