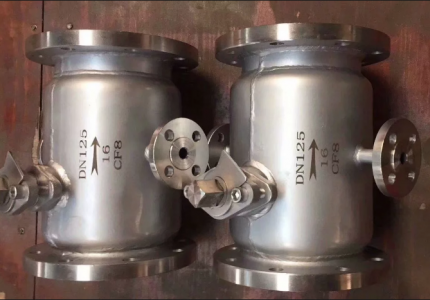

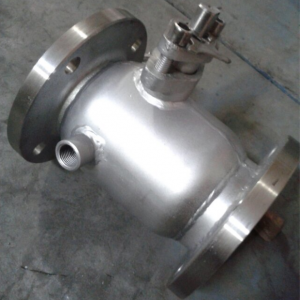

Steam Jacketed ball valve

Steam Jacketed ball valveSteam Jacketed ball valve
Steam Jacketed ball valve

Steam Jacketed ball valve Product introduction

Steam Jacketed ball valve largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly.


Each Full Steam Jacketed ball valve body construction replace by adding minimum one size higher flanges to achieve proper tighten space of bolt and nut.


As example: for Steam Jacketed ball valve Size DN50 x DN80 (2” x 3”), Steam Jacketed ball valve has the nominal bore of DN50 (2” – 50MM) and the flange size DN80 (3” – 80MM), which allows enough space for bolting clearance after jacket fabricated (welded) on modified valve body. These types of Steam Jacketed ball valve termed as a Full Jacketed Valve.


Steam Jacketed ball valve available with body materials Cast Caron Steel (WCB), Alloy Steel, Cast Stainless Steel (SS304-316-304L-316L,CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel (LC1/LCB/LCC), Duplex Steel (D2205), Super Duplex Steel, Hastelloy (HC-C22/HC276), Alloy 20 (CN7M), Monel, Inconel, Aluminium Bronze, Nickel Aluminium Bronze etc.
