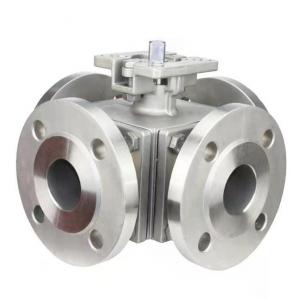

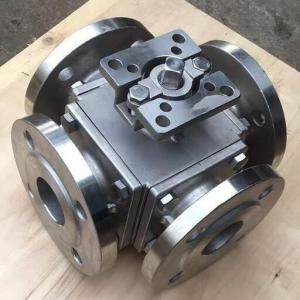

Stainless steel 4 way ball valve

Stainless steel 4 way ball valve Product introduction

4 Way Ball Valve in Carbon Steel, Stainless Steel and others metal on special request. Stainless steel 4 way ball valve selection covers Full Port (Full Bore), Flanged End, with Manual Hand Lever, Gear Box, Pneumatic Actuator, Electrical Actuator Operation.

Stainless steel 4 way ball valve has an L / T / X (Double L) / Straight Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure.

T Port 4 Way Ball Valve connect any three ports, L Port 4 Way Ball Valve connect any two side right angle port, X Port 4 Way Ball Valve in side have two L Shaped Port in the ball that do not interconnect, it is also called as X Port Ball Valve.

We also offering 4 way ball valve with either Pneumatic or Electrical actuator operated for automation. We have wide range of Pnenumatic Actuator Operated four way Ball Valve, Pneumatic Actuated 4 Way Ball Valve, Remote Operated Four Way Ball Valve, Auto Shut Off 4 Way Ball Valve, Pneumatic Actuated 4 Way Ball Valve, Pneumatic Air Operated 4 Way Ball Valves, X Port 4 Way Ball Valve Pneumaticaly.

Stainless steel 4 way ball valve Specification:

Product Name	stainless steel 4 way ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size	1/2~16 inch ( DN15~DN400)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092

Stainless steel 4 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
