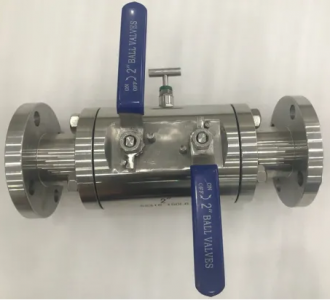

Floating Double Block and Bleed ball Valve

Floating Double Block and Bleed ball ValveFloating Double Block and Bleed ball Valve
Floating Double Block and Bleed ball Valve

Floating Double Block and Bleed ball Valve Product introduction

 Floating Double Block and Bleed ball Valve assure double isolation function thanks to two obturator inserted in a single body and Floating Double Block and Bleed ball Valve provides the bleed function by means of a bleed/vent system located between obturators(body port and ball, gate or needle valve), from the floating ball valve design, Floating Double Block and Bleed ball Double Block and Bleed ball Valve with several different constructions.
» Double fixed balls hinged on supports, and floating metal or soft seats, central needle vent valve
» Floating Double Block and Bleed ball Valve Full bore or Reduce bore
» Different kinds of ends connections(RF/RTJ) Flanges, Butt weld, Clamp Connection, Socket Welding.
» Wide availability of materials sepending on the specifications(carbon steel, stainless steel or Duplex steel for service in corrosive environments, Chrome-Molybdenum alloy steel for high temperature service, etc.
» Floating Double Block and Bleed ball Valve Materials with anti-corrosion properties according to NACE MR 0175
» On request, seat pocket area overlay, seal area overylay, or completed cladding on wetted surface(welded overlays in inconel 625, Stainless Steel 316 etc., or Electroless Nickel Plating)
» Floating Double Block and Bleed ball Valve is Suitable for wrench or motorized actuation(hydraulic, pneumatic, gas-over-oil or electric actuator)

Floating Double Block and Bleed ball Valve Technical parameters

» Size Range from 1/2” through 2”, large sizes on request
» Pressure Range: from ASME Class 150 to ASME Class 2500
» Temperature Range: from -46 to 450
» Side Entry Forged Steel Valves
» On request, Top-Entry design
» Low pressure loss through the valve
» Low actuation torque
» “CE” marking in compliance with PED Directive 97/23/EC
