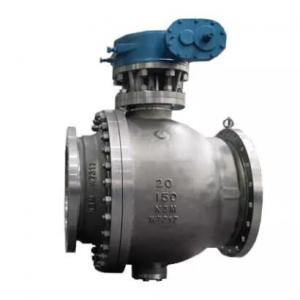

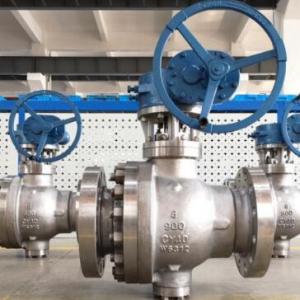

Hastelloy ball valve manufacturer

Hastelloy ball valve manufacturerHastelloy ball valve manufacturer
Hastelloy ball valve manufacturer

Hastelloy ball valve manufacturer Product introduction

 Hastelloy ball valve manufacturer, factory and supplier. Hastelloy ball valve contains ultra-low carbon and high Ni, Mo and Cr elements, which belong to corrosion-resistant and high temperature-resistant materials. Hastelloy ball valve is well known for good machinability, although the alloy work hardens as is true of the nickel base alloys in general. We manufacture hastelloy ball valves in various rating and dimension, according to your specifications.

Hastelloy ball valve application Specification:
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~2500LB, 1.0MPa~42.0MPa, JIS 10K~40K

Size range: NPS 3/8″~48″, DN8~DN1200

End connections: flange, wafer, threaded, butt weld, socket weld

Operation: handle lever operated ball valve, gear operated ball valve, pneumatic operated ball valve, hydraulic actuator, electric actuator.


Hastelloy ball valve application:
Petroleum chemical industry.

Inorganic, organic, and mixed Acids.

Industries requiring high thermal stability and process-ability, such as agriculture, nuclear facilities, bio-pharmaceutical industry, etc.

Seawater desalination.

Pulp and paper.

Aerospace industry
