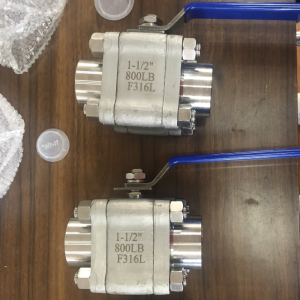

Class 800 NPT Threaded ball valve F304 F316
Class 800 NPT Threaded ball valve F304 F316
Class 800 NPT Threaded ball valve F304 F316 Product introduction
Forged Steel Ball Valve Manufacturer, Factory and Supplier for Class 800 NPT Threaded ball valve F304 F316, 2 PC or 3PC, full bore, floating ball structure. Class 800 NPT Threaded ball valve F304 F316 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.Class 800 NPT Threaded ball valve F304 F316 has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of Class 800 NPT Threaded ball valve F304 F316 can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.
Class 800 NPT Threaded ball valve F304 F316 Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Class 800 NPT Threaded ball valve F304 F316 Specification:
| Product Name |
Class 800 NPT Threaded ball valve F304 F316 |
| 1. Material |
F304,F316 etc. |
| 2. Size |
1/4~4 inch ( DN10~DN100) |
| 3. Port |
Full Port |
| 4. Working Pressure |
800LB or others |
| 5. Connection Ends |
Threaded end,Socket weld,Butt weld,Flanged end is optional |
| 6. Working Temp. |
-20~180ºC,-46~450ºC, or according to customer requirements for different industry. |
| 7. Suitable Medium |
Water, Natural Gas, Oil and some corrosive liquid |
| 8. Operation |
Handle operated, Locking device is option |
| 9. Inspection & Testing |
According to API598 |
