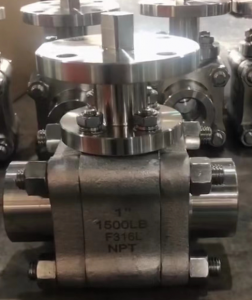

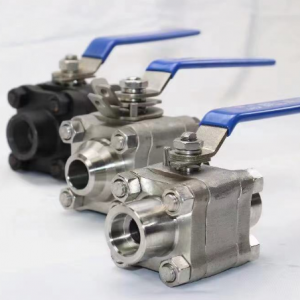

Class 1500 High pressure forged ball valve

Class 1500 High pressure forged ball valve Product introduction

　1500LB High Pressure Forged Steel Ball Valve Manufacturer, Factory and Supplier for Class 1500 High pressure forged ball valve, 3PC, full bore, floating ball structure. Class 1500 High pressure forged ball valve is mainly used for oil and natural gas and urban gas piping systems. Class 1500 socket weld forged steel ball valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of Class 1500 High pressure forged ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

Class 1500 High pressure forged ball valve Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Class 1500 High pressure forged ball valve Specification:

Product Name	Class 1500 High pressure forged ball valve
1. Material	A105,F304,F316 etc.
2. Size	1/4~4 inch ( DN10~DN100)
3. Port	Full Port
4. Working Pressure	1500LB or others
5. Connection Ends	Threaded end,Socket weld,Butt weld,Flanged end is optional
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Class 1500 High pressure forged ball valve material:

NO.	Part Name	Carbon steel ASTM	Stainless steel ASTM
NO.	Part Name	Type A105N	Type F304(L)	Type F316(L)
1, 2	Body/Bonnet	ASTMA105 N	A182 F304(L)	A182 F316(L)
3	Bolt	A193B7	A193 B8	A193 B8M
4	Nut	A1942H	A1948	A194 8M
5,8	Seal ring /Gasket	RTFE+1010/PPL
6	Ball	A182F304	A182 F304(L)	A182 F316(L)
7	Stem	A182F410	A182 F304(L)	A182 F316(L)
9,10	Stem Packing	PTFE+Cu Power/Nylon 1010/PPL
11	Gland	A182F410	A182 F304(L)	A182 F316(L)
12	Spring	65Mn
13	Nut	A194B7	A1948	A1948
14	Wrench	Q235A
15	Pin	A194B7	F316	F316

Note: Other materials are available upon request.
