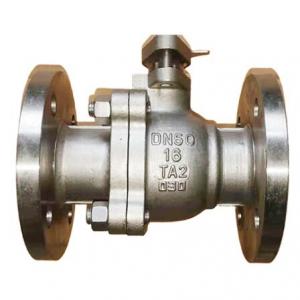

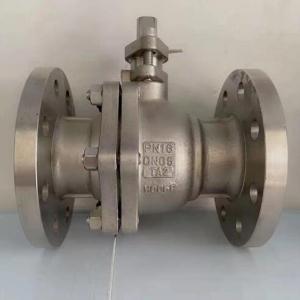

China Titanium Alloy TA2 Ball Valve manufacturer, factory and supplier. Titanium Alloy TA2 Ball Valve is widely used specially in the automotive, aviation, shipping and PTA industries, titanium alloy ball valve is favored for their strength, corrosion resistance, and portability. Titanium alloy ball valve is designed to provide years of service at an economical cost and are available in various options.
Titanium Ball Valve is widely used in chlor-alkali industry, soda industry, pharmaceutical industry, fertilizer industry, fine industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc. Titanium Ball Valve selection points for attention: titanium valve should not be used for concentration > 98% or containing > 6% free NO2 red nicotinic acid; Titanium valves should not be used in dry chlorine gas with water content less than 1.5%. Natural explosions will occur in pure oxygen (PO2 > 35%). In addition to considering corrosion, the harm of hydrogen embrittlement of titanium valve should be paid full attention to. Titanium Ball Valve should fully consider the point gap and stress corrosion tendency in corrosive medium; The operating temperature of titanium ball valve should not exceed 330℃, and it is recommended to use heat-resistant titanium alloy material. When choosing titanium valve materials, it is necessary to fully consider the working temperature, composition of the medium, concentration of each component, water content and other four aspects of the corrosive medium in the working condition. Special consideration should be given to the point gap and stress corrosion tendency of the titanium valve in the working condition medium, natural explosion, and attention should be paid to the catastrophic damage factors such as hydrogen embrittleness caused by titanium hydrogen absorption for various reasons. It is strictly prohibited to use the titanium valve in the working environment where the above damage may occur. Commonly used titanium and titanium alloy materials are: TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4
China Titanium Alloy TA2 Ball Valve Specification:
Pressure rating: PN1.6-10.0Mpa Class150-600Lb
Nominal Size: DN15-DN600 NPS1/2"-24"
Driving mode: Handle, worm gear, pneumatic, hydraulic, electric
Applicable medium: oxidizing corrosive medium.
China Titanium Alloy TA2 Ball Valve Standard:
Design standard: GB/T12237, API6D, ASME B16.34
Construction length: GB/T12221, API6D, ASME B16.10
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API6D, API598
China Titanium Alloy Ball Valve Main material:
Body, cover: TA1, TA2, TA10, Gr2, Gr3
Ball: TA1, TA2, TA10, Gr2, Gr3
Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing ring: PTFE, RPTFE, PPL, PEEK.......
