China 6000 PSI WOG ball valve

China 6000 PSI WOG ball valveChina 6000 PSI WOG ball valve
China 6000 PSI WOG ball valve

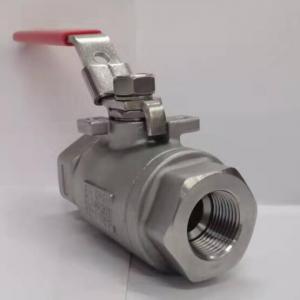

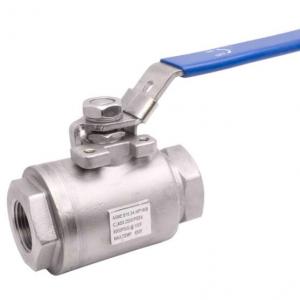

China 6000 PSI WOG ball valve Product introduction

 China 6000 PSI WOG ball valve manufacturer, factory and supplier. 6000 PSI WOG ball valve can be  NPT,BSP,RC threaded end or SW,BW welded end with WCB, 304SS, 316SS or other material is optional. 6000 PSI WOG ball valve is for high pressure medium which can be used in sanitary, corrosive, or industrial applications for (at ambient temperature) water, oil, or gas and steam. 6000 PSI WOG ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle. ISO 5211 mounting pad is optional for lever, electric or pneumatic actuator.

6000 PSI WOG ball valve specification
Type: Ball Valve, 2 piece or 3 piece, Full Port
Size: 3/8"-4''
Rating: 6000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC) or welded end (SW,BW)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad for lever, electric or pneumatic actuator
