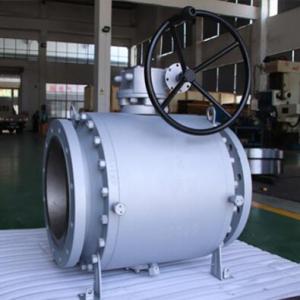

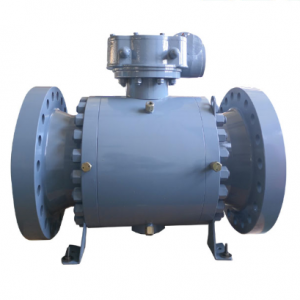

Cast steel 20 Inch trunnion ball valve

Cast steel 20 Inch trunnion ball valveCast steel 20 Inch trunnion ball valve
Cast steel 20 Inch trunnion ball valve

Cast steel 20 Inch trunnion ball valve Product introduction

 China trunnion ball valve manufacturer,factory,company and supplier for cast steel 20 inch trunnion ball valve,which is trunnion mounted structure, 3PC split body,full bore or reduced bore with different material and different pressure class.


Cast steel 20 inch trunnion ball valve specification

Product Name cast steel 20 inch trunnion ball valve
1. Material A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size 2''~48'' ( DN50~DN1200)
4. Port Full Port
5. Working Pressure 150LB~2500LB
6. Connection Ends Flange
7. Working Temp. -196ºC~450ºC
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing According to API598

Cast steel 20 inch trunnion ball valve feature

Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8" & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic


Cast steel 20 inch trunnion ball valve standard
Design And Manufacture : ASME B16.34/API 6D
Valve Structural Length : ASME B16.10
Flange Connection Dimension : ASME B 16.5
Valve Check Up And Manufacture Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
