aterial: Aluminum Bronze C95800,C95500,C95400,RG5

Sealing:Metal or soft

Pressure: ASME Class150~2500LBS (PN16~PN260)

Size: NPS 2”~48” (50mm~1200mm)

Connection: RF, RTJ, BW

Operation: Hand lever, Gearbox, Pneumatic, Electric

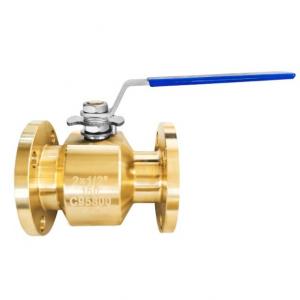

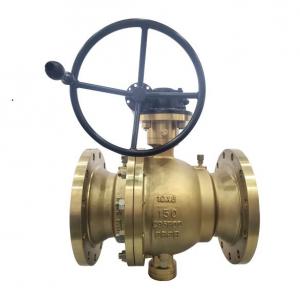

C95800 Nickel Aluminum Bronze Ball Valve Standard:

Design: API6D ,ASME B16.34 ,BS5351,ISO14313

Fire safe:API607,API 6FA,

Face-to-face: API 6D/ ASME B16.10

Flanged Ends:ASME B16.5/B16.47 /MSS SP-44/DIN/EN1092-1/GOST33259/JIS

BW Ends:ASME B16.25

Inspection Test :API 598,API6D,ISO5208,EN12266-1

Temperature Ratings :ASME B16.34

Certificate:EN 10204 type 3.1

Markings: MSS SP25

C95800 Nickel Aluminum Bronze Ball Valve Features:
Bolted body or welded body, reduced bore or full bore, floating or trunnion ball, bi-direction flow, NACE MR-01-75, low torque, full bore or reduced bore piggable, and cryogenic designed metal seat ball valve with low temperate test and low fugitive emission test also available.

Zero leakage high performance metal to metal seat sealing.

High temperature application designed for solid particles.
