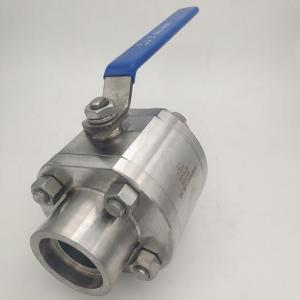

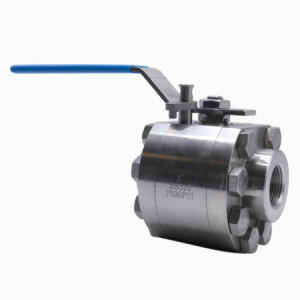

7500 PSI High pressure forged ball valve

7500 PSI High pressure forged ball valve7500 PSI High pressure forged ball valve
7500 PSI High pressure forged ball valve

7500 PSI High pressure forged ball valve Product introduction

 High pressure forged ball valve Manufacturer, Factory and Supplier for 7500 PSI High pressure forged ball valve with NPT BW SW, 3PC, full bore, floating ball structure. 7500 PSI High pressure forged ball valve is mainly used for oil and natural gas and urban gas piping systems. 7500 PSI High pressure forged ball valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 7500 PSI High pressure forged ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

7500 PSI High pressure forged ball valve Feature:

1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator
.

7500 PSI High pressure forged ball valve Specification:
Product Name 7500 PSI High pressure forged ball valve
1. Material A105,F304,F316 etc.
2. Size 1/4~4 inch ( DN10~DN100)
3. Port Full Port
4. Working Pressure 7500 PSI or others
5. Connection Ends Threaded end,Socket weld,Butt weld,Flanged end is optional
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

7500 PSI High pressure forged ball valve material:
NO.
Part Name
Carbon steel ASTM
Stainless steel ASTM
Type A105N
Type F304(L)
Type F316(L)
1, 2
Body/Bonnet
ASTMA105 N
A182 F304(L)
A182 F316(L)
3
Bolt
A193B7
A193 B8
A193 B8M
4
Nut
A1942H
A1948
A194 8M
5,8
Seal ring /Gasket
RTFE+1010/PPL
6
Ball
A182F304
A182 F304(L)
A182 F316(L)
7
Stem
A182F410
A182 F304(L)
A182 F316(L)
9,10
Stem Packing
PTFE+Cu Power/Nylon 1010/PPL
11
Gland
A182F410
A182 F304(L)
A182 F316(L)
12
Spring
65Mn
13
Nut
A194B7
A1948
A1948
14
Wrench
Q235A
15
Pin
A194B7
F316
F316
Note: Other materials are available upon request.
