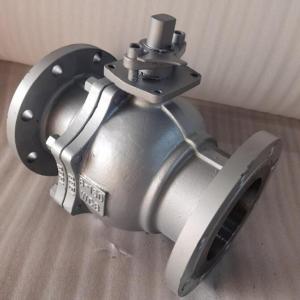

6 inch Cast steel ball valve WCB

6 inch Cast steel ball valve WCB6 inch Cast steel ball valve WCB
6 inch Cast steel ball valve WCB

6 inch Cast steel ball valve WCB Product introduction

 6 inch cast steel ball valve WCB can be used respectively for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.6 inch cast steel ball valve WCB can be widely used in papermaking, petrochemical, chemical industry, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial departments of automatic control system.

6 inch cast steel ball valve WCB Specification:
Product Name 6 inch cast steel ball valve WCB
1. Material WCB 304 316 CF8 CF8M or others
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port or reduced port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange or others
6. Working Temp.  -29~150℃,-40~450℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

6 inch cast steel ball valve WCB Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.


6 inch cast steel ball valve WCB performance:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
