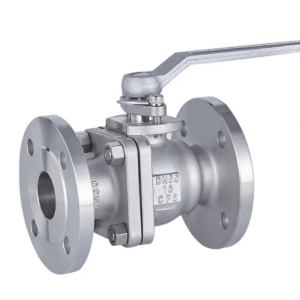

304 316 stainless steel ball valve

304 316 stainless steel ball valve304 316 stainless steel ball valve
304 316 stainless steel ball valve

304 316 stainless steel ball valve Product introduction

 304 316 stainless steel ball valve features
  • Power: Manual
  • Material: Stainless Steel
  • Temperature of Media: Normal Temperature
  • Media: Acid
  • Port Size: 1/4"-48"
  • Type: Flange Ball Valve

304 316 stainless steel ball valve Specifications

304 316 stainless steel ball valve
Size: 1/4"~ 48" , DN 6-1200mm
Pressure : 150 -2500LB, PN 10~420
Material :SS and CS

304 316 stainless steel ball valve Main part material

304 316 stainless steel ball valve Main material : WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect.
  • 304 316 stainless steel ball valve Pressure rating: Class 150 to Class 2500 (PN2.5 to PN 420)
  • 304 316 stainless steel ball valve Standards applied: API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc.
  • 304 316 stainless steel ball valve Operative temperature: -196 °C to 980 °C ( -320.8 °F to 1796 °F)
  • 304 316 stainless steel ball valveOptional operation: Manual, Gear, Electric, Pneumatic, Hydraulic.

304 316 stainless steel ball valve Related Products

Previous:4 way ball valve

Next:Duplex stainless steel ball valve
