3000 PSI WOG NPT Ball Valve

3000 PSI WOG NPT Ball Valve3000 PSI WOG NPT Ball Valve
3000 PSI WOG NPT Ball Valve

3000 PSI WOG NPT Ball Valve Product introduction

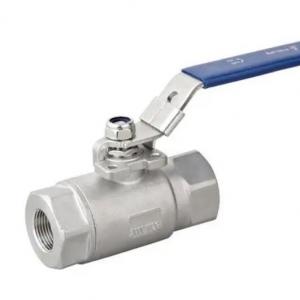

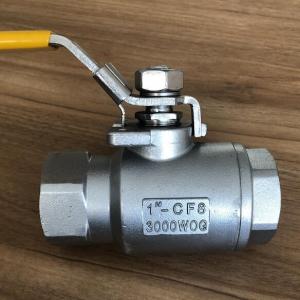

3000 PSI WOG NPT Ball Valve Manufacturer, Factory and Supplier in China. 3000 PSI WOG NPT Ball Valve is 2 piece cast stainless steel material body, full bore, floating ball structure. 3000 PSI WOG NPT Ball Valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 3000 PSI WOG NPT Ball Valve can be manual, Lever, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

3000 PSI WOG NPT Ball Valve Feature:
1. All parts are casting, or forged structure is optional.
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Lever, Pneumatic actuator & Electric Actuator.


3000 PSI WOG NPT Ball Valve Specification:
Product Name 3000 PSI WOG NPT Ball valve
1. Material Casting:WCB, CF8,CF8M,etc.
Forging: A105,F304,F316 etc.
2. Size 1/4~2 inch ( DN10~DN50)
3. Port Full Port
4. Working Pressure 3000 PSI or others
5. Connection Ends Threaded end Socket welded or others
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598
