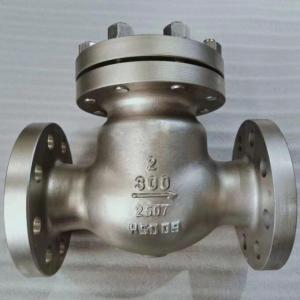

Super Duplex Steel 2507 Check Valve

Super Duplex Steel 2507 Check Valve Product introduction

　Super Duplex Steel 2507 Check Valve Manufacturer, Factory and Supplier In China. Super Duplex Steel 2507 Check Valve is more and more popular used for high corrosion applications. Super Duplex Steel 2507 Check Valve has excellent performance of corrosion-resisitant. Also, the duplex stainless steel check valve is particularly resistant to not only chloride stress corrosion but also chloride pitting corrosion. Its PREN value of UNS S31803 is between 38 to 45.

The main application of Super Duplex Steel 2507 Check Valve includes oil&gas, seawater desalination, shipbuilding, pharmaceutical, petroleum, chemical, and so on.

Duplex stainless steel check valve is also known as 2205, 2507, S31803, S32205, A351 CD3MN, ASTM A182 F51,F53,F55 and 1.4470.

Super Duplex Steel 2507 Check Valve Performance:

High resistance to chloride stress corrosion cracking
Chloride pitting and crevice corrosion resistance superior to 317L stainless
Good general corrosion resistance
High strength
Good sulfide stress corrosion resistance
Useful up to 600°F

Super Duplex Steel 2507 Check Valve Specification：

Design standards: API, ASME, EN, ISO, JIS, DIN, BS, GB
End to End: Flange, Threaded, SW/BW, Wafer
Pressure Rating: CIass150-2500Lb, 1.0-42.0MPa, JIS10K～40K
Size range: NPS1/2＂～48＂，DN15～DN1200

Optional Material: Duplex stainless steel 2205，Super Duplex steel 2507, Duplex S31803, Super Duplex S32750, Super Duplex S32760, CD4MCu, CD4MCuN, CD3MCuN, CE8MN, CD6MN, CD3MN, CE3MN, CD3MWCuN,F51, F53, F55, F60
