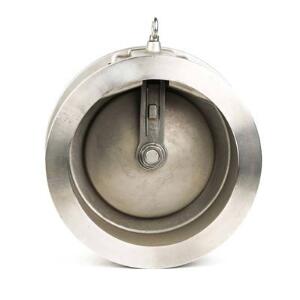

Wafer single disc swing check valve

Wafer single disc swing check valveWafer single disc swing check valve
Wafer single disc swing check valve

Wafer single disc swing check valve Product introduction

 China check valve manufacturer,factory,company and supplier ,Wafer single disc swing check valve is applicable for various pipelines with nominal pressure of PN1.0 Mpa~42.0Mpa,Class 150LB~2500LB and nominal diameter of DN15~1200mm,NPS 1/2-48 and working temperature of -196~540 degree Celsius to be used for protecting from medium backflowing.The different materials selection can apply to the medium involving water,steam,oils,nitric acid,acetid,strong oxidizing medium and urea etc.

Wafer single disc swing check valve specification
Face to face per ANSI B 16.10
Flange ends dimension ANSI B 16.5/ANSI B 16.47
Final inspection tests to API598.
Sizes: 1/2" - 48" ,DN15- DN2800
Pressure Rating: Class150 - Class2500,PN16 - PN420
working temperature: -196~540 degree Celsius.
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
