H42X Stainless steel foot valve

Drawing
Catalogue
Inquiry

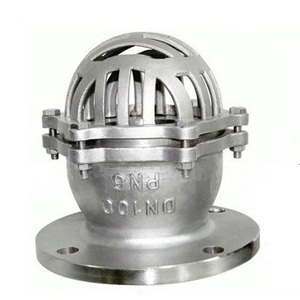

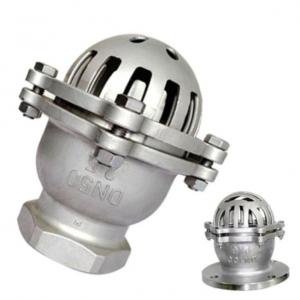

H42X Stainless steel foot valve Product introduction

H42X Stainless steel foot valve is installed at the bottom of pump suction line, which can automatically prevent fluid from backflow..Stainless steel foot valve model is H42X-2.5, H42X-6,H42X-16,H42X-16.

H42X Stainless steel foot valve dimension

Type	DN （mm）	Dimension（mm）								Weight（kg）
Type	DN （mm）	D	D1	D2	b-f	Z-Φd	D0	h0	H	Weight（kg）
H42X-2.5	50	140	110	90	16-3	4-14	135	17	142	4
	65	160	130	110	16-3	4-14	168	25	180	6.5
	80	185	150	125	18-3	4-18	198	32	197	8.5
	100	205	170	145	18-3	4-18	247	40	230	143.5
	125	235	2500	175	20-3	8-18	272	43	270	18
	150	260	225	200	20-3	8-18	315	38	297	24
	200	315	280	255	22-3	8-18	405	65	382	38
	250	370	335	310	24-3	12-18	465	84	460	64
	300	435	395	262	24-4	12-23	510	90	530	9
