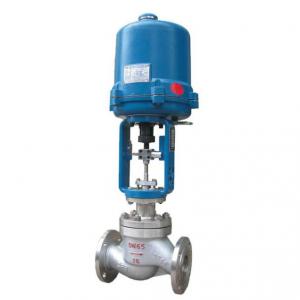

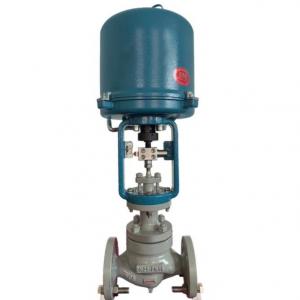

ZDLP Single seat motorized control valve

ZDLP Single seat motorized control valveZDLP Single seat motorized control valve
ZDLP Single seat motorized control valve

ZDLP Single seat motorized control valve Product introduction

 ZDLP Motorized control valve manufacturer, factory and supplier. ZDLP Single seat motorized control valve by PSL series and 3810 series electronic actuator and single seat control valve. Power supply is 220V.AC 50Hz, including servo amplifier, position signal generator, position limit switch and valve position display. ZDLP Single seat motorized control valve can directly accept industrial control instrument or computer output (4-20mADC or 1-5VDC) for valve opening control, to adjust the medium pressure flow, temperature and other purposes. At the same time can output (4-20 MADc or 1-5VDC) valve position feedback signal. ZDLP Single seat motorized control valve  body for low resistance through single seat upper guide structure. It has the characteristics of high precision, large flow and small leakage.

ZDLP Single seat motorized control valve specifiation:

ZDLP control valve body type: straight through casting globe type
Spool type: unbalanced seated
Nominal size: DN15~300,、 NPS 1/2〞~ 12〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Electric 2 way control valve
material:
WCB/WCC/WC6/CF8/CF8M/CF3M
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
Actuator of control valve:            Electric: 3810L series smart actuator, PSL series actuator.

ZDLP Single seat motorized control valve specifiation:
ZDLP Single seat motorized control valve
Type\ Method
Electric actuator
PSL or 3810L series
Intelligent integrated type
Usage Regulating
Air supply pressure or Power supply voltage Power: AC 220V±10%  50Hz
Or Power:  AC 380V±10% 50Hz
Connector Normal type:  cable inlet 2-PF(G1/2〞)
Explosive proof:  Protection jacket PF(G3/4〞)
Direct action Input signal increase, stem descend, valve close.
Reaction Input signal increase, stem ascend, valve open.
Input signal Input / output 4~20mA.DC
Lag ≤0.8%FS
Linear type ≤+1%FS
Environmental temperature Standard type: -10℃~+60℃
With space heater : -35℃~+60℃
Explosive proof: -10℃~+40℃
Motorized steam control valve
Accessories
Space heater (normal type)
Non-standard accessories, need special customized notes.
