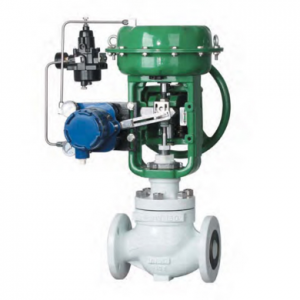

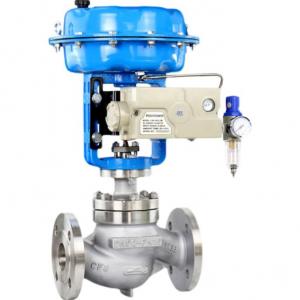

Pneumatic steam control valve

Pneumatic steam control valvePneumatic steam control valve
Pneumatic steam control valve

Pneumatic steam control valve Product introduction

Pneumatic steam control valve is used to control the flow of steam in a variety of industrial applications including: chemical, petrochemical, bio-tech, food and beverage, pharmaceutical, general industrial, and research. Customers depend on control valve for precise, repeatable performance.Pneumatic steam control valve adopts pressure-balanced spool structure, allowed large pressure differential, low noise and steady and reliable actuation.

Pneumatic steam control valve feature:

Pneumatic steam control valve
Body type:
straight through casting globe type
Spool type: balanced cage guided sleeve type
Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Pneumatic steam flow control valve
Bonnet type:
Ⅰ:standard type(-20℃~230℃)
Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
Ⅲ:Low temperature extended type(-196℃~ -45℃)
Ⅳ:Bellow seal type
Ⅴ:Warm insulation Jacket type
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
control valve Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
