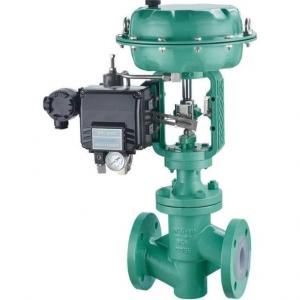

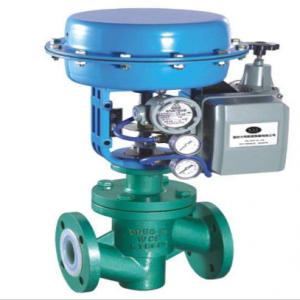

Pneumatic PTFE PFA Lined control valve

Pneumatic PTFE PFA Lined control valvePneumatic PTFE PFA Lined control valve
Pneumatic PTFE PFA Lined control valve

Pneumatic PTFE PFA Lined control valve Product introduction

 Pneumatic PTFE PFA lined control valve is composed of pneumatic diaphragm actuator,straight through single seat fluoride (PTFE,FEP,PFA) Lined structure.Pneumatic PTFE PFA lined control valve contacted with the corrosive medium adopts the corrosion-resistant, anti-aging PTFE,PEP,PRA, the high pressure lining fluorine plastic process.Pneumatic PTFE PFA lined control valve is capable of controlling the flow of acid, alkali, aqua wang and other highly corrosive media, toxic volatile gas and liquid media.Therefore, Pneumatic PTFE PFA lined control valve is widely used in chemical, metallurgy, medicine and other industries.

Pneumatic PTFE PFA lined control valve feature:
1. Good corrosion resistance: the inner cavity of  Pneumatic fluorine lined control valve body, core, seat are lined with 3mm thick fluorine (PTFE,PEP,PRA) , which can withstand strong corrosive fluid.
2. Good sealing performance: double sealing with PTFE bellows and packing.
3. The leakage quantity is little, because the Pneumatic fluorine lined control valve core and seat are soft seal, leakage was far below the national Ⅳ level standard.
4. High adjustment accuracy: Pneumatic fluorine lined control valve adopts precise and small pneumatic and electric actuators, small in size and light in weight.


Pneumatic PTFE PFA lined control valve specification:
PTFE PFA lined control valve
Body type:
straight through casting globe type
Fluoride (PTFE,FEP,PFA)  lined
Spool type: non-balanced single seat plug type
Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Pneumatic fluoride lined control valve Bonnet type: Ⅰ:standard type(-29℃~150℃)
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
