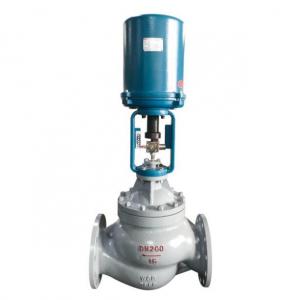

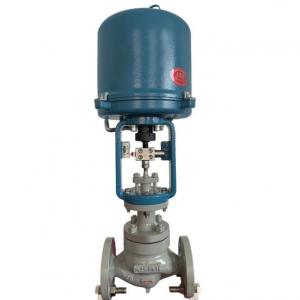

ZDLM Cage type motorized control valve

ZDLM Cage type motorized control valve Product introduction

　ZDLM motorized control valve manufacturer, factory and supplier. ZDLM Cage type motorized control valve is composed of PS series or 3810 series direct travel electric actuator and high flow resistance through cage guiede control valve. The electric actuator is an electronic integrated structure, with servo amplifier, input control signal (4-20mADC or 1-5VDC) and power supply to control the valve opening, to achieve the adjustment of pressure, flow, liquid level, temperature and other working parameters. ZDLM Cage type motorized control valve has the characteristics of sensitive action, simple connection, large flow, small volume and high adjustment accuracy.

ZDLM Cage type motorized control valve has the characteristics of good stability, not easy to produce vibration, low noise, sensitive to temperature and so on. ZDLM Cage type motorized control valve is widely used in electric power, metallurgy, chemical industry, petroleum, environmental protection, light industry, equipment and other industries.

ZDLM Cage type motorized control valve specifiation:

Control valve body type:	straight through casting globe type
Spool type:	balanced cage guided sleeve ype
Nominal size:	DN25~600,、 NPS 1〞~ 24〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
ZAZM Motorized cage guided control valve material:	WCB/WCC/WC6/CF8/CF8M/CF3M
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Actuator of control valve:	Electric: 3810L series smart actuator, PSL series actuator.

ZDLM Cage type motorized control valve actuator specification:

Motorized Control Valve Type\ Method	Electric actuator
	PSL or 3810L series
	Intelligent integrated type
Usage	Regulating
Air supply pressure or Power supply voltage	Power: AC 220V±10% 50Hz Or Power: AC 380V±10% 50Hz
Connector	Normal type: cable inlet 2-PF(G1/2〞) Explosive proof: Protection jacket PF(G3/4〞)
Direct action	Input signal increase, stem descend, valve close.
Reaction	Input signal increase, stem ascend, valve open.
Input signal	Input/output4～20mA.DC
Lag	≤0.8%FS
Linear type	≤+1%FS
Environmental temperature	Standard type: -10℃～+60℃ With space heater : -35℃～+60℃ Explosive proof: -10℃～+40℃
Motorized Control Valve Accessories	Space heater (normal type) Non-standard accessories, need special customized notes.
