YK42X YK42F Pressure reducing valve

YK42X YK42F Pressure reducing valveYK42X YK42F Pressure reducing valve
YK42X YK42F Pressure reducing valve

YK42X YK42F Pressure reducing valve Product introduction

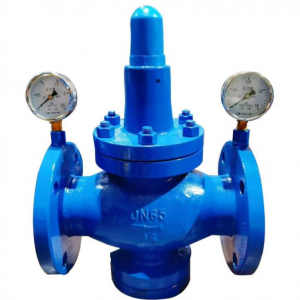

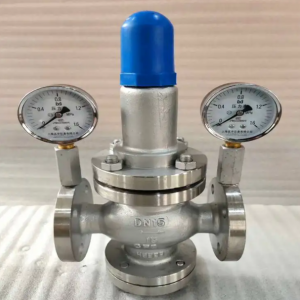

 YK42X YK42F Pressure reducing valve is direct acting diaphragm spring structure, which is updated on base of Y42X Y42F Pressure reducing valve,both flanges end installed the pressure guage to witness inlet and outlet pressure. YK42X YK42F Pressure reducing valve mainly consists of adjusting spring, diaphragm, piston, seat, disc and other parts.The pressure downstream of the diaphragm can be directly sensed to drive the disc, and the water pressure reducing valve opening can be controlled to realize pressure reduction and pressure stabilization.YK42X YK42F Pressure reducing valve can replace the conventional sectional water pipe and save equipment in the cold and hot water supply system of urban buildings and high-rise buildings.YK42X YK42F Pressure reducing valve can also be in the usual hot and cold pipeline.

YK42X YK42F Pressure reducing valve material
Part Name                                                    Part Material
Body/Bonnet/End bonnet WCB/Cast iron/Ductile iron
Seat 2Cr13/
Cylinder sleeve 2Cr13/Copper
Piston Cast iron
Guide valve seat / stem 2Cr13
Main valve spring 1Cr18Ni9Ti
Guide valve sprig 50CrVA
Regulating spring 60Si12Mn

YK42X YK42F Pressure reducing valve  technical parameter
Nominal pressure(MPa)                                      1.0            1.6             2.5
Shell test pressure(MPa) 1.5 2.4 3.75
Seal test pressure(MPa) 1.1 1.6 2.5
Max. Inlet pressure(MPa) 1.1 1.6 2.5
Outlet pressure range(MPa) 0.2-0.8 0.2-1.0 0.4-1.6
Pressure characteristic deviation(MPa)△P2P GB12246-1989
 Flow characteristic deviation(MPa)△P2G GB12246-1989
Max. Pressure difference(MPa) 0.15 0.15 0.15
Leakage Level 0 m L/min
Note:Shell test does not include diaphragm and roof.
