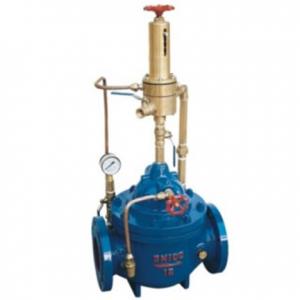

500X Pressure relief valve

500X Pressure relief valve500X Pressure relief valve
500X Pressure relief valve

500X Pressure relief valve Product introduction

500X Pressure relief valve manufacturer, factory and supplier. 500X Pressure relief valve is a throttling element whose local resistance can be changed, that is, by changing the throttling area, the flow rate and the kinetic energy of the fluid can be changed. 500X Pressure relief valve reduces the waste of water and makes the system flow distribution reasonable, improves the system layout and working conditions, so overall it is still energy saving. We also provide you competitive price, fast delivery and professional after-sales service.


500X Pressure relief valve Features:

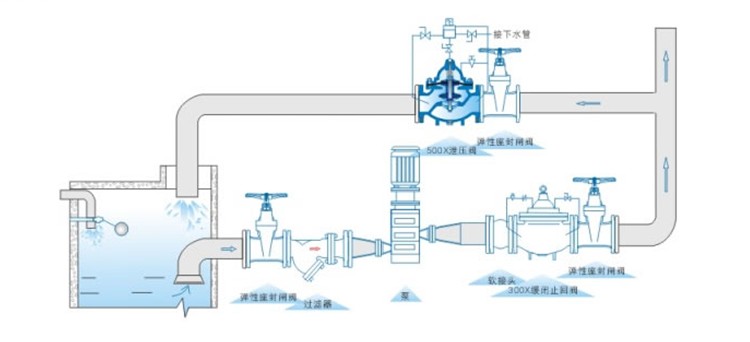

500X Pressure relief valve is a valve that reduces the inlet pressure to a certain required outlet pressure through regulation. Also, it has flexible operation, and the valve seat and stem bearings are equipped with low coefficient of friction and good self-lubrication performance. For the convenience of operation, adjustment and maintenance, pressure reducing valves should generally be installed on horizontal piping.


\

500X Pressure relief valve Main dimension

DN L A A1 H H1 F D
mm
D1
mm
D2
mm
n-Φd
mm mm mm mm mm mm PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5
20 180 330 130 550 460 116 105 105 105 75 75 75 58 58 56 4-13.5 4-13.5 4-14
25 180 330 130 550 460 116 115 115 115 85 85 85 68 68 65 4-13.5 4-13.5 4-14
32 180 330 130 550 460 116 140 140 140 100 100 100 78 78 76 4-17.5 4-17.5 4-18
40 240 345 135 610 516 170 150 150 150 110 110 110 88 88 84 4-17.5 4-17.5 4-18
50 240 345 135 610 516 170 165 165 165 125 125 125 102 102 99 4-17.5 4-17.5 4-18
65 250 355 140 625 520 180 185 185 185 145 145 145 122 122 118 4-17.5 4-17.5 8-18
80 285 360 146 645 538 210 200 200 200 160 160 160 133 133 132 8-17.5 8-17.5 8-18
100 360 400 156 750 596 275 220 220 235 180 180 190 158 158 156 8-17.5 8-17.5 8-22
125 400 420 170 808 655 310 250 250 270 210 210 220 184 184 184 8-17.5 8-17.5 8-26
150 455 435 186 864 710 355 285 285 300 240 240 250 212 212 211 8-22 8-22 8-26
200 585 480 206 1135 805 460 340 340 360 295 295 310 268 268 274 8-22 12-22 12-26
250 650 530 226 1185 855 500 395 405 425 350 355 370 320 320 330 12-22 12-26 12-30
300 800 575 246 1325 955 580 445 460 485 400 410 430 370 370 389 12-22 12-26 16-30
350 860 620 275 1385 990 640 505 520 555 460 470 490 430 430 448 16-22 16-26 16-33
400 960 635 286 1445 1030 715 565 580 620 515 525 550 482 482 503 16-26 16-30 16-36
450 1075 665 320 1325 905 780 615 640 670 565 585 600 532 550 548 20-26 20-30 20-36
500 1075 695 348 1430 960 830 670 715 730 620 650 660 585 585 609 20-26 20-33 20-36
600 1230 720 372 1565 1020 920 780 840 845 725 770 770 685 685 720 20-30 20-36 20-39
700 1650 770 422 1755 1160 980 895 910 960 840 840 875 800 800 820 24-30 24-36 24-42
800 1750 805 458 2230 1515 1050 1015 1025 1085 950 950 990 905 905 928 24-33 24-39 24-48

500X Pressure relief valve Product order instruction
