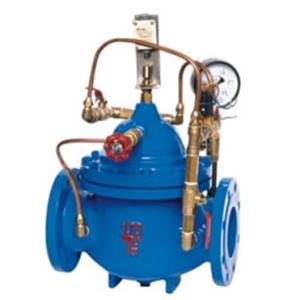

700X Water pump control valve Product introduction

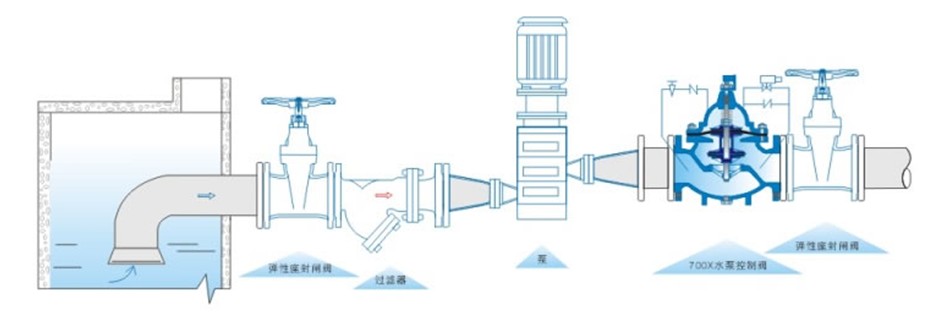

700X Water pump control valve manufacturer, factory and supplier. 700X Water pump control valve is installed in-line directly downstream of the pump discharge. 700X Water pump control valve is normally closed, and, on pump start-up, a pilot solenoid is energized to slowly open the valve, at a rate governed by the opening speed control. The pipeline flow is gradually increased.


When shut-down is required, the pilot solenoid is de-energized to close the main valve and reduce the flow. The pump is kept running while the booster pump control valve slowly closes. When the valve is almost fully closed and flow is virtually stopped, a cam triggers the limit switch to stop the pump.


With the internal drop check option, the built-in mechanical drop check closes immediately when the flow stops, regardless of the valve position. Whether due to a control malfunction, normal operation or a pump motor power failure, by closing before flow reverses, surges are minimized.

700X Water pump control valve performance:

Substantially reduces pump starting and stopping surges

Separate opening and closing speed controls

Cost effective pump control system

Optional internal mechanical drop check reduces power failure surge

Available Material: Ductile Iron , Carbon Steel, Stainless Steel

Size Range: DN50-DN600 2”-24”

 Pressure Range: PN10, PN16, 150Lb, 300Lb


\

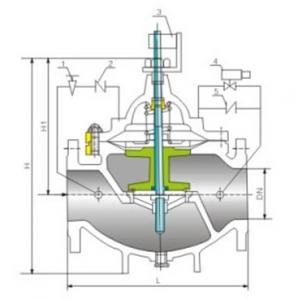

700X Water pump control valve Main dimension

DN L A A1 H H1 F D
mm
D1
mm
D2
mm
n-Φd
mm mm mm mm mm mm PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5
20 180 292 136 342 247 116 105 105 105 75 75 75 58 58 56 4-13.5 4-13.5 4-14
25 180 292 136 342 247 116 115 115 115 85 85 85 68 68 65 4-13.5 4-13.5 4-14
32 180 292 136 342 247 116 140 140 140 100 100 100 78 78 76 4-17.5 4-17.5 4-18
40 240 330 155 395 278 170 150 150 150 110 110 112 88 88 84 4-17.5 4-17.5 4-18
50 240 330 155 395 278 170 165 165 165 125 125 125 102 102 99 4-17.5 4-17.5 4-18
65 250 350 165 405 298 180 185 185 185 145 145 145 122 122 118 4-17.5 4-17.5 8-18
80 285 365 175 430 313 210 200 200 200 160 160 160 133 133 132 8-17.5 8-17.5 8-18
100 360 410 195 510 350 275 220 220 235 180 180 190 158 158 156 8-17.5 8-17.5 8-22
125 400 455 220 560 365 310 250 250 270 210 210 220 184 184 184 8-17.5 8-17.5 8-26
150 455 475 230 585 420 355 285 285 300 240 240 250 212 212 211 8-22 8-22 8-26
200 585 530 255 675 450 460 340 340 360 295 295 310 268 268 274 8-22 12-22 12-26
250 650 623 300 730 470 500 395 405 425 350 355 370 320 320 330 12-22 12-26 12-30
300 800 700 340 760 490 580 445 460 485 400 410 430 370 370 389 12-22 12-26 16-30
350 860 840 415 840 526 640 505 520 555 460 470 490 430 430 448 16-22 16-26 16-33
400 960 880 430 910 570 715 565 580 620 515 525 550 482 482 503 16-26 16-30 16-36
450 1075 930 460 1030 610 780 615 640 670 565 585 600 532 550 548 20-26 20-30 20-36
500 1075 980 490 1135 665 830 670 715 730 620 650 660 585 585 609 20-26 20-33 20-36
600 1230 1060 530 1270 725 920 780 840 845 725 770 770 685 685 720 20-30 20-36 20-39
700 1650 1130 560 1460 865 980 895 910 960 840 840 875 800 800 820 24-30 24-36 24-42
800 1750 1230 610 1640 975 1050 1015 1025 1085 950 950 990 905 905 9285 24-33 24-39 24-48
