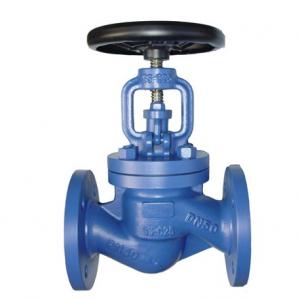

WJ41H Bellow seal globe valve Product introduction

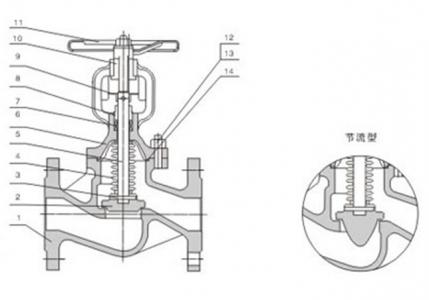

WJ41H Bellow seal globe valve Main dimension
| DN | L | D | D1 | D2 | b | f | Do | H | N-ΦZ |
| 1.6(PN16) | |||||||||
| 15 | 130 | 95 | 65 | 46 | 14 | 2 | 100 | 236 | 4-14 |
| 20 | 150 | 105 | 75 | 56 | 16 | 2 | 100 | 242 | 4-14 |
| 25 | 160 | 115 | 85 | 65 | 16 | 3 | 125 | 286 | 4-14 |
| 32 | 180 | 140 | 100 | 76 | 18 | 3 | 125 | 295 | 4-18 |
| 40 | 200 | 150 | 110 | 84 | 18 | 3 | 150 | 330 | 4-18 |
| 50 | 230 | 165 | 125 | 99 | 20 | 3 | 150 | 350 | 4-48 |
| 65 | 290 | 185 | 145 | 118 | 20 | 3 | 200 | 400 | 4-18 |
| 80 | 310 | 200 | 160 | 132 | 20 | 3 | 200 | 430 | 8-18 |
| 100 | 350 | 220 | 180 | 156 | 22 | 3 | 250 | 465 | 8-18 |
| 125 | 400 | 250 | 210 | 184 | 22 | 3 | 250 | 505 | 8-18 |
| 150 | 480 | 285 | 240 | 211 | 24 | 3 | 300 | 613 | 8-22 |
| 200 | 600 | 340 | 295 | 266 | 24 | 3 | 420 | 714 | 12-22 |
| 250 | 730 | 405 | 355 | 319 | 26 | 3 | 500 | 810 | 12-26 |
| 300 | 850 | 460 | 410 | 370 | 28 | 4 | 670 | 910 | 12-26 |
