J13H globe valve

J13H globe valveJ13H globe valve
J13H globe valve

J13H globe valve Product introduction

J13H globe valve

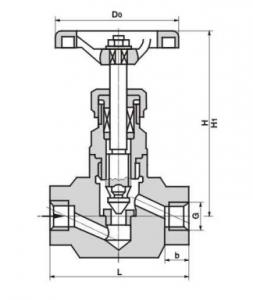

J13H globe valve Main dimension

尺寸 DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L mm 130 150 160 180 200 230 290 310 350 400 480 600 650 750 850 950
H mm 200 243 253 280 312 321 325 355 415 460 510 700 975 1115 1250 1380
W mm 120 140 160 160 200 200 240 240 280 320 360 560 600 700 800 900

 2.5MPa

尺寸 DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L mm 130 150 160 180 200 230 290 310 350 400 480 600 650 750 850 950
H mm 200 243 253 280 312 321 325 355 415 460 510 700 975 1115 1250 1380
W mm 120 140 160 160 200 200 240 240 280 320 360 560 600 700 800 900

4.0MPa

尺寸 DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L mm 130 150 160 180 200 230 290 310 350 400 480 600 650 750 850 950
H mm 200 243 253 280 312 321 325 355 415 460 510 700 975 1115 1250 1380
W mm 120 140 160 160 200 200 240 240 280 320 360 560 600 700 800 900
