J41H A105 Flange globe valve

J41H A105 Flange globe valveJ41H A105 Flange globe valve
J41H A105 Flange globe valve

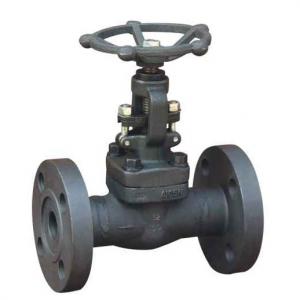

J41H A105 Flange globe valve Product introduction

 J41H A105 Flange globe valve

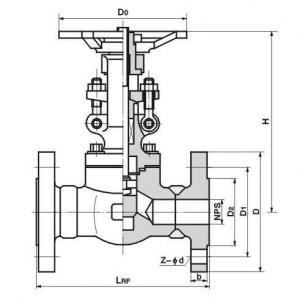

J41H A105 Flange globe valve Main dimension

DN J41H A105 Flange globe valve Dimension
L d S L1 T L2 H D0
J41H-16   CJ41H-25   J41H-40   J11H-16   CJ11H-25   J11H-40   J61H-16C   J61H-25   J61H-40
15 90 13 22.5 10 1/2 15 159 98
20 100 18 28.5 11 3/4 17 190 112
25 120 23 34.5 12 1 19 208 126
32 140 29 43 14 1? 21 216 166
40 170 36 49 15 1? 21 247 188
50 200 46 61 16 2 25 290 220
J41H-64   J11H-64   J61H-64
15 90 13 22.5 10 1/2 15 159 98
20 100 18 28.5 11 3/4 17 190 112
25 120 23 34.5 12 1 19 208 126
32 140 29 43 14 1? 21 216 166
40 170 36 49 15 1? 21 258 188
50 210 46 61 16 2 25 405 220
公称通径 J41H A105 Flange globe valve Dimension
L d S L1 T L2 H D0
J41H-100   J11H-100   J61H-100
15 90 13 22.5 10 1/2 15 159 98
20 100 18 28.5 11 3/4 17 190 112
25 120 23 34.5 12 1 19 208 126
32 140 29 43 14 1? 21 216 166
40 170 26 49 15 1? 21 258 188
50 210 46 61 16 2 25 405 220
J41H-160   J11H-160  J61H-160
15 90 13 22.5 10 1/2 15 159 98
20 100 18 28.5 11 3/4 17 190 112
25 120 23 34.5 12 1 19 208 126
32 140 29 43 14 1? 21 216 188
40 170 36 49 15 1? 21 258 220
50 210 46 61 16 2 25 405 220
