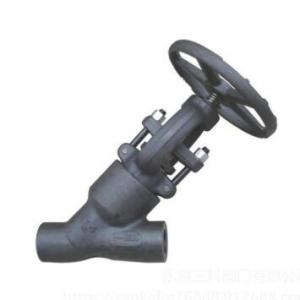

Y pattern pressure seal bonnet globe valve

Y pattern pressure seal bonnet globe valveY pattern pressure seal bonnet globe valve
Y pattern pressure seal bonnet globe valve

Y pattern pressure seal bonnet globe valve Product introduction

 : 425 Deg C for Carbon Steel Material, 540 Deg C for WC6 Material, 570 Deg C for WC9 Material.


Y pattern pressure seal bonnet globe valve  structure design and specification

Y pattern pressure seal bonnet globe valve is manufactured according to API 602,BS5352,ANSI/ASME B16.34.Test and acceptance according to API 598, marking according to MSS SP-25.

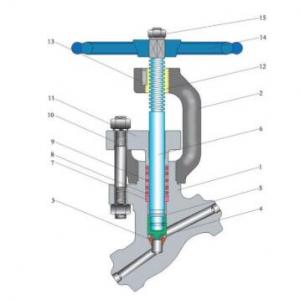

Y pattern pressure seal bonnet globe valve  structure

1. Full diameter or reduced diameter;

2. Rising stem with support;

3. Automatic self-aligning packing sleeve at both ends;

4. Bolted bonnet sealed with wound gasket, threaded sealing welded bonnet, or self-sealing bonnet

5. The body back seal;

6. Socket weld or butt weld  according to ANSI/ASME B16.11;

7. Threaded end (NPT end) according to ANSI/ASME B1.20.1.
