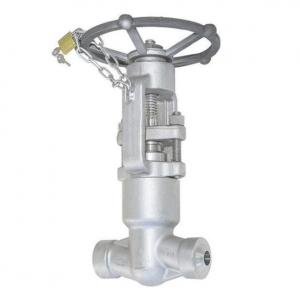

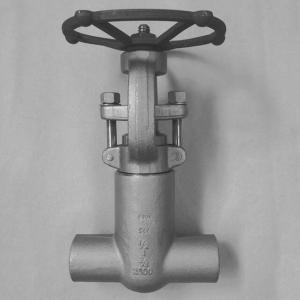

Pressure Seal Globe Valve Class 2500

Pressure Seal Globe Valve Class 2500Pressure Seal Globe Valve Class 2500
Pressure Seal Globe Valve Class 2500

Pressure Seal Globe Valve Class 2500 Product introduction

China Pressure seal globe valve manufacturer, factory and supplier. Pressure seal globe valve Class 2500 is a Pressure Seal Bonnet, Rising Stem design. The seat is integral hardfaced with Stellite (API Trim #8). Pressure seal globe valve Class 2500 is designed to API 602 and tested to API 598. Butt Weld and Socket Weld ends are available.

Pressure seal globe valve Class 2500 specification

OS&Y,Rising stem,Plug Disc
Pressure sealing Bonnet (PSB),Threaded or welded seating
Design and Manufacture:BS1873, ASME B16.34
Face to face Dimensions (end to end): ASME B16.10
Flanged Ends Dimensions: ASME B16.5
Butt welded end Dimensions: ASME B16.25
Test and inspection Standard: API598
Manufacturing to NACE MR-01-75 on request.

Pressure seal globe valve Class 2500 design feature:
Globe valve Type: Through way type , Y type Globe valve, and Angle Type globe valve, OS&Y, Rising Stem .
Disc: Plug type disc, regulating disc(throttling disc) ,regular disc,
Bonnet : Pressure seal bonnet (PSB)
Sear Ring:Rrenewable seat ring seat ring , welded seat ring or Integral Seat
Type of connection:Raised Face flange (RF) , RING TYPE JOINT FLANGE(RTJ), Butt welding ends (BW) ASME B16.25
Operated type: Hand wheel , Gear Operated, Pneumatic Operated, Electric Operated, Impact Hand wheel Operated  or Bare stem with ISO5210 top mounting pad for actuator etc.


Pressure seal globe valve Class 2500 Material:
Carbon Steel: A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, monel k500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C
Duplex Stainless Steel: A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel: A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB) Gunmetal: B148 C95500,C95800,C95400,B62, C83600,B61,B62 C92200, B150 C63200
DIN Material: GS-C25,1.0619 1.4408, 1.4308,C22.8
