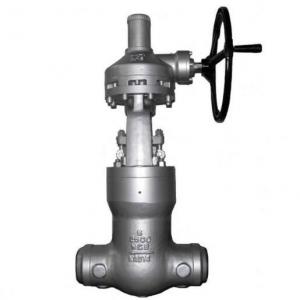

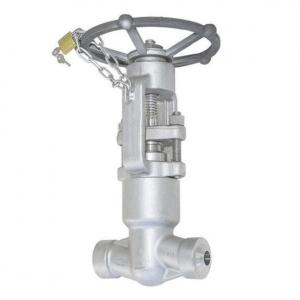

Pressure Seal Bonnet Globe Valve Manufacturer Product introduction

 China Pressure seal bonnet globe valve manufacturer, factory and supplier. Pressure seal bonnet globe valve can be Class 900 to 2500 with Pressure Seal Bonnet, Rising Stem design. The seat is integral hardfaced with Stellite (API Trim #8) or other trim optional. Pressure seal bonnet globe valve is designed to API 602 and tested to API 598. Butt Weld and Socket Weld ends are available.



Pressure seal bonnet globe valve specification

OS&Y,Rising stem,Plug Disc
Pressure sealing Bonnet (PSB),Threaded or welded seating
Design and Manufacture:BS1873, ASME B16.34
Face to face Dimensions (end to end): ASME B16.10
Flanged Ends Dimensions: ASME B16.5
Butt welded end Dimensions: ASME B16.25
Test and inspection Standard: API598
Manufacturing to NACE MR-01-75 on request.


Pressure seal bonnet globe valve design feature:
Globe valve Type: Through way type , Y type Globe valve, and Angle Type globe valve, OS&Y, Rising Stem .
Disc: Plug type disc, regulating disc(throttling disc) ,regular disc,
Bonnet : Pressure seal bonnet (PSB)
Sear Ring:Rrenewable seat ring seat ring , welded seat ring or Integral Seat
Type of connection:Raised Face flange (RF) , RING TYPE JOINT FLANGE(RTJ), Butt welding ends (BW) ASME B16.25
Operated type: Hand wheel , Gear Operated, Pneumatic Operated, Electric Operated, Impact Hand wheel Operated or Bare stem with ISO5210 top mounting pad for actuator etc.


Pressure seal bonnet globe valve Material:
Carbon Steel: A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, monel k500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C
Duplex Stainless Steel: A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel: A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB) Gunmetal: B148 C95500,C95800,C95400,B62, C83600,B61,B62 C92200, B150 C63200
DIN Material: GS-C25,1.0619 1.4408, 1.4308,C22.8
