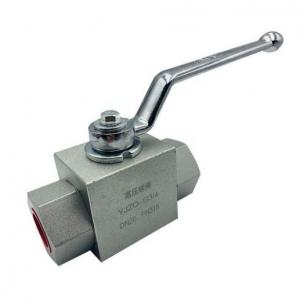

YJZQ High pressure hydraulic ball valve

YJZQ High pressure hydraulic ball valveYJZQ High pressure hydraulic ball valve
YJZQ High pressure hydraulic ball valve

YJZQ High pressure hydraulic ball valve Product introduction

YJZQ high pressure hydraulic ball valve manufacturer, factory and supplier produce 21Mpa, 31.5Mpa 2 way high pressure hydraulic ball valve for hydraulic system, YJZQ high pressure hydraulic ball valve is suitable for putting through and cutting off in hydraulic system pipeline.YJZQ high pressure hydraulic ball valve is made of steel forgings, the surface is chrome-plated, the appearance is beautiful, the operation is convenient, the sealing performance is good, it is the product of the hydraulic system pipeline.Operating temperature: -20~+80℃(please explain when ordering high temperature ball valves)

YJZQ high pressure hydraulic ball valve features
YJZQ 2 way hydraulic ball valve adopts integral forging processing, the hydraulc ball valve is simple in structure, convenient in operation, small in fluid resistance, reliable in sealing performance, replaceable sealing parts and payment parts, increasing the life and reducing the user cost;It has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and exquisite appearance.High pressure resistance, wide application, can be used to control the hydropower station oil, gas, water pipe system on and off.

YJZQ high pressure hydraulic ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

YJZQ high pressure hydraulic ball valve type introduction
Code: Y--Hydraulic
Product code: JZQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type: N--Femle thread (NG--British pipe thread)
                            W--Male thread
                            B--Board type

YJZQ high pressure hydraulic ball valve dimension
YJZQ hydraulic ball valve dimension

YJZQ Male thread end hydraulic ball valve dimension
YJZQ hydraulic ball valve dimension
YJZQ hydraulic ball valve dimension
