YFYQ High Pressure Hydraulic Ball Valve
YFYQ High Pressure Hydraulic Ball Valve
YFYQ High Pressure Hydraulic Ball Valve Product introduction
YFYQ High pressure hydraulic ball valve manufacturer, factory and supplier. YFYQ High pressure hydraulic ball valve model including YFYQ-J6HW, YFYQ-J8HW, YFYQ-J10HW, YFYQ-J15HW, YFYQ-J20HW, YFYQ-J25HW, YFYQ-J32HW, YFYQ-H40HW, YFYQ-H50HW, YFYQ-H65HW for male threaded end and YFYQ-J6LN, YFYQ-J8LN, YFYQ-J10LN, YFYQ-J15LN, YFYQ-J20LN, YFYQ-J25LN, YFYQ-J32LN, YFYQ-H40LN, YFYQ-H50LN, YFYQ-H65LN For female threaded end. YFYQ High pressure hydraulic ball valve is suitable for putting through and cutting off in hydraulic system pipeline.YFYQ High pressure hydraulic ball valve is made of steel forgings, the surface is chrome-plated, the appearance is beautiful, the operation is convenient, the sealing performance is good, it is the product of the hydraulic system pipeline.YFYQ High pressure hydraulic ball valve operating temperature: -20~+80℃(please explain when ordering high temperature ball valves)
YFYQ High pressure hydraulic ball valve features
YFYQ High pressure hydraulic ball valve adopts integral forging processing, the hydraulic ball valve is simple in structure, convenient in operation, small in fluid resistance, reliable in sealing performance, replaceable sealing parts and payment parts, increasing the life and reducing the user cost;YFYQ High pressure hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and exquisite appearance.High pressure resistance, wide application, can be used to control the hydropower station oil, gas, water pipe system on and off.
YFYQ High pressure hydraulic ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.
YFYQ High pressure hydraulic ball valve type introduction
Code: Y--Hydraulic
Product code: FYQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type: HW--Male thread ( G thread)
LW-Male thread(NPT,RC,BS thead)
LN-Female thread
LK--Clamp end
LF--Socket flange end

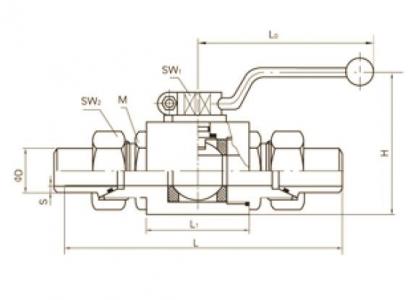

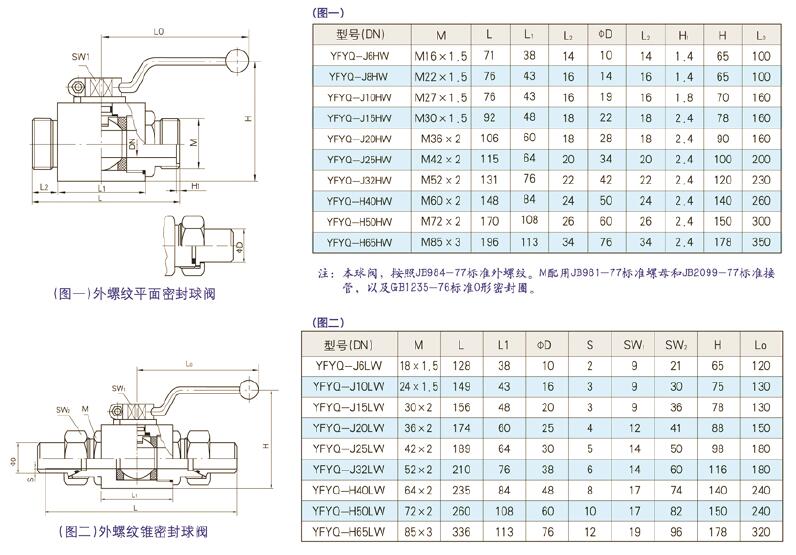

YFYQ High pressure hydraulic ball valve dimension
