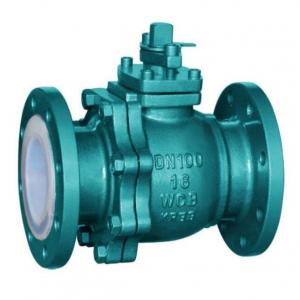

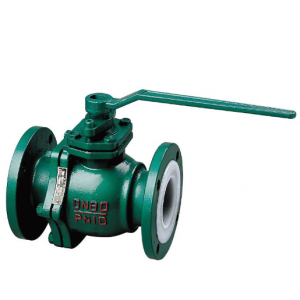

FEP Lined ball valve

FEP Lined ball valveFEP Lined ball valve
FEP Lined ball valve

FEP Lined ball valve Product introduction

China FEP lined ball valve manufacturer, factory and supplier. FEP lined ball valve the lining material adopts the FEP (F46) and PTFE (F4), PFA,PO, FRPP fluorine plastic. FEP lined ball valve can be applied to all kinds of the concentration of sulfuric acid, hydrochloric acid, hydrofluoric acid, aqua regia, and all kinds of organic acid, strong acid, strong oxidizer and other corrosive medium pipeline.

FEP lined ball valve body is a two-piece precision casting structure, with PTFE, F46, or PFA lining in the valve body chamber and valve core, providing excellent resistance to chemical fluid corrosion. Airtight class bidirectional sealing, valve ball, seat through precision machining, to ensure zero leakage of the valve.The full size provides the same CV value as the pipe. FEP lined ball valve can be widely used in petroleum, chemical industry, electronics, metallurgy, medical power, environmental protection and other industrial sectors, can realize the acid, alkali and other strong corrosive media circulation and cut off.




FEP lined ball valve performance

Nominal size: DN15- DN600,1/2’’-24’’
Nominal pressure: PN1.0Mpa, 1.6Mpa,CL150
Body material:WCB,CF8,CF8M,CF3,CF3M,ect.
Lining material: FEP (F46) and PTFE (F4), PFA,PO, FRPP
Operating temperature: -40 ~ +180℃;
Gland type: bolt compression type
Packing: Teflon packing
Fluorine lined ball valve assembly
Flow characteristics: approximate equal percentage
Rated stroke: 90° full open




FEP lined ball valve feature

FEP lined ball valve is full diameter floating ball (two-stage type) and full diameter fixed ball (three-stage type) (small diameter is two-piece type, large diameter is three-piece type), FEP lined ball valve is mainly used to cut off or connect the corrosive medium in pipeline and can be used for fluid regulation and control. Compared with other valves, FEP lined ball valve has the following features:
1. Small fluid resistance, the lining of the ball valve inner wall smooth, smooth flow passage is the least resistance of all valves.
2. The switch is fast and convenient, and only need to rotate the sphere 90° to complete the opening and closing action.
3. Special molding process is adopted to line the lining material on the inner wall of valve shell, which can withstand the corrosion of strong acid and strong alkali media.The liner sphere is combined with the PTFE seat for good sealing and zero leakage.
4. Pneumatic, electric, hydraulic and other driving devices can be configured to achieve remote control and automatic operation.
5. The ball is integrated with the valve stem to eliminate the rotation Angle difference, eliminate the risk of valve stem rushing out of the body due to pressure changes, and ensure the safety and reliability of use.
6. The ball valve with fluorine plastic lining has extremely high chemical stability and is suitable for any strong corrosive chemical medium;
7. Adopt all-pass floating ball valve structure to shut off the element leakage within the whole pressure range, so as to facilitate the pipeline system to sweep the line through the ball and maintain the pipeline.
