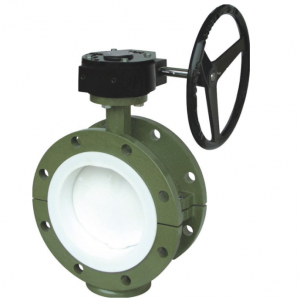

D341F4 PTFE lined butterfly valve
D341F4 PTFE lined butterfly valve
D341F4 PTFE lined butterfly valve Product introduction
D341F4 PTFE lined butterfly valve Technical Specification:
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10, GB/T 12221
Flange Standard: ASME B 16.5, GB/T 9119, DIN, JIS
Inspection and Testing: API 598, GB/T 13927
D341F4 PTFE lined butterfly valve Product Specification
Body Material: WCB, ASTM A395, CF8, CF8M
Lining Material: PTFE, PFA, PO, FEP, EPDM
Nominal Diameter: 2"-48"(DN50~DN1200)
Pressure Range: Class150, PN6, PN10, PN16
Connection Type: Flange, Wafer, Lug Connection
Operation Method: Manual, Worn gear, Electric, Pneumatic actuator
D341F4 PTFE lined butterfly valve Products Description
1. The D341F4 PTFE lined butterfly valve bi-directional flow is possible at maxmium operating pressure. SinceD341F4 PTFE lined butterfly valve port corresponds to the piping diameter, a high flow capacity is guaranteed.
2. It features ease of maintenance, repeatable on-off, long life durability.
3. The concentric design of D341F4 PTFE lined butterfly valve is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
4. Lining material: PTFE, PFA, FEP, GXPO etc.
5. D341F4 PTFE lined butterfly valve Connection type: Wafer, flange, lug etc.
6. Operation methods: Manual, worm gear, electric, pneumatic and hydraulic actuator.
7. D341F4 PTFE lined butterfly valve are available as per the needs of applications in additional sizes and other than standard materials.
