H76F46 PTFE FEP PFA Lined Wafer Check Valve Product introduction

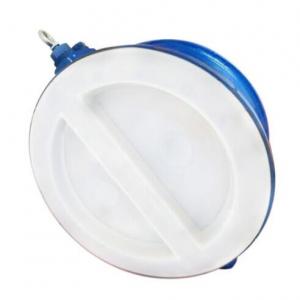

H76F46 PTFE FEP PFA Lined Wafer Check Valve manufacturer, factory and supplier. H76F46 PTFE FEP PFA Lined Wafer Check Valve is a kind of double disc swing type check valve, H76F46 PTFE FEP PFA Lined Wafer Check Valve has the advantages of simple structure, beautiful appearance, light weight, convenient installation, etc., suitable for places with limited installation space. H76F46 PTFE FEP PFA Lined Wafer Check Valve is suitable for various concentrations of aqua king, sulfuric acid, hydrochloric acid, HF and various organic acids, strong acids, strong oxidants, etc
H76F46 PTFE FEP PFA Lined Wafer Check Valve is used for piping system, its main function is to prevent the media backflow, prevent the pump and its drive motor machine reverse, and the medium in the container discharge. H76F46 PTFE FEP PFA Lined Wafer Check Valve can also be used to feed pipes where the pressure may rise to exceed the pressure of the main system. Check valve according to the different material, can be applied to a variety of media pipeline. H76F46 PTFE FEP PFA Lined Wafer Check Valve is installed on the line and becomes one of the fluid components of the complete line. The opening and closing process of the disc is affected by the transient flow state of the system in which it is located.
H76F46 PTFE FEP PFA Lined Wafer Check Valve Specification:
Size Range : 50 mm to 600 mm (larger sizes on request)
Flange : Wafer Type to Sandwich between flanges as per ANSI B16.5 / B16.42
Face to Face : ANSI B16.10 / DIN 3202 K1 / BS 5155 / ISO 5752 / API 609
Lining Thickness : 3 to 5 mm
Body / Disc Material. : Cast Steel ASTM A216 Gr. WCB, ASTM A351 Gr. CF8 (S.S.304), ASTM A351 Gr. CF8M (S.S.316)
PTFE Solid Seat Retainer Ring
Lining Material Options : PFA – ASTM D 3307, FEP – ASTM D 2116, PVDF – ASTM D 3322
Test and Inspection : Hydraulic Test : Body (Shell) 15 Kg/Cm, Back Seat Test :02 Kg/Cm,
Spark Test : 15 K.V.D.C.
