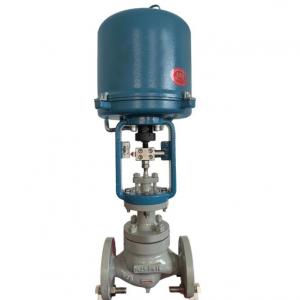

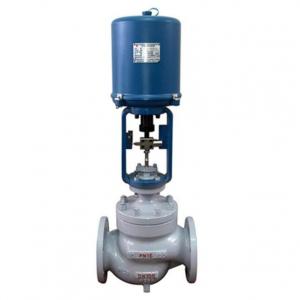

Motorized two way control valve

Motorized two way control valveMotorized two way control valve
Motorized two way control valve

Motorized two way control valve Product introduction

 Motorized two way control valve adopts single seated or cage guided structure globe valve and 220V AC or 380V AC electric actuator for regulating flow,pressure,level,temperature function.Motorized two way control valve is applicable for low leakage requirement;Two way electric actuator control valve adopts pressure-balanced spool structure, large allowed pressure differential, low noise&steady and reliable actuation;Electric actuator of Motorized two way control valve with servo system, no need the servo amplifier, can work when supplying power and input signal, with small sensitivity to temperature.

Motorzied two way control valve specifiation:

Motorized two way control valve body type: straight through casting globe type
Spool type: balanced cage guided sleeve ype
Nominal size: DN25~300,、 NPS 1〞~ 12〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Motorized two way control valve
material:
WCB/WCC/WC6/CF8/CF8M/CF3M
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
Actuator of control valve: Electric: 3810L series smart actuator, PSL series actuator.


Motorzied two way control valve actuator specifiation:
Motorized two way control valve
Type\ Method
Electric actuator
3810L series (R type)
Intelligent integrated type
Usage Regulating
Air supply pressure or Power supply voltage Power: AC 220V±10%  50Hz
Or Power:  AC 380V±10% 50Hz
Connector Normal type:  cable inlet 2-PF(G1/2〞)
Explosive proof:  Protection jacket PF(G3/4〞)
Direct action Input signal increase, stem descend, valve close.
Reaction Input signal increase, stem ascend, valve open.
Input signal Input/output4~20mA.DC
Lag ≤0.8%FS
Linear type ≤+1%FS
Environmental temperature Standard type: -10℃~+60℃
With space heater : -35℃~+60℃
Explosive proof: -10℃~+40℃
Motorized two way control valve
Accessories
Space heater (normal type)
Non-standard accessories, need special customized notes.
