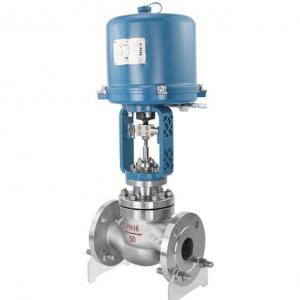

Electric stainless steel control valve

Electric stainless steel control valveElectric stainless steel control valve
Electric stainless steel control valve

Electric stainless steel control valve Product introduction

Electric stainless steel control valve composed of 304,316 or other stainless steel globe type body,which adopts single seated or cage guided structure according to the pressure difference,Electric stainless steel control valve is applicable for low leakage requirement;Electric stainless steel control valve adopts pressure-balanced spool structure, large allowed pressure differential, low noise&steady and reliable actuation;Electric actuator of Electric stainless steel control valve with servo system, no need the servo amplifier, can work when supplying power and input signal, with small sensitivity to temperature.

Electric stainless steel control valve specifiation:

Electric control valve body type: straight through casting globe type
Spool type: balanced cage guided sleeve ype
Nominal size: DN25~300,、 NPS 1〞~ 12〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Electric stainless steel control valve
material:
WCB/WCC/WC6/CF8/CF8M/CF3M
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
Actuator of control valve: Electric: 3810L series smart actuator, PSL series actuator.


Electric stainless steel control valve actuator specifiation:
Electric stainless steel control valve\ Method Electric actuator
3810L series (R type)
Intelligent integrated type
Usage Regulating
Air supply pressure or Power supply voltage Power: AC 220V±10%  50Hz
Or Power:  AC 380V±10% 50Hz
Connector Normal type:  cable inlet 2-PF(G1/2〞)
Explosive proof:  Protection jacket PF(G3/4〞)
Direct action Input signal increase, stem descend, valve close.
Reaction Input signal increase, stem ascend, valve open.
Input signal Input/output4~20mA.DC
Lag ≤0.8%FS
Linear type ≤+1%FS
Environmental temperature Standard type: -10℃~+60℃
With space heater : -35℃~+60℃
Explosive proof: -10℃~+40℃
Electric stainless steel control valve
Accessories
Space heater (normal type)
Non-standard accessories, need special customized notes.

Electric stainless steel control valve Technical parameters


Electric stainless steel control valve Main part material


Electric stainless steel control valve Main dimension


Electric stainless steel control valve Product order instruction

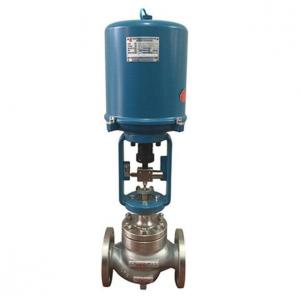

Electric stainless steel control valve Product show
