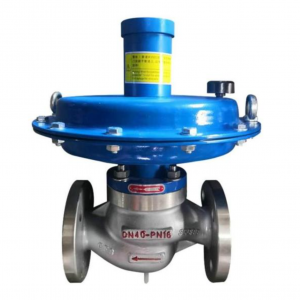

ZZVP Nitrogen Gas Pressure Reducing Valve

ZZVP Nitrogen Gas Pressure Reducing ValveZZVP Nitrogen Gas Pressure Reducing Valve
ZZVP Nitrogen Gas Pressure Reducing Valve

ZZVP Nitrogen Gas Pressure Reducing Valve Product introduction

 ZZVP Nitrogen gas pressure reducing valve manufacturer, factory and supplier. ZZVP Nitrogen gas pressure reducing valve is an energy-saving pressure regulating valve that does not require external energy and only relies on the pressure change of the medium to be adjusted to achieve automatic adjustment and stable pressure difference. ZZVP Nitrogen gas pressure reducing valve can be applied to industrial furnace systems to control the flow ratio of two materials, such as gas and air, to achieve ideal combustion. ZZVP Nitrogen gas pressure reducing valve is used in the hydrogen-cooled generator set sealing oil system to control the pressure difference between seal oil and hydrogen to ensure reliability. seal. When the low pressure end of the differential pressure valve is open to the atmosphere, it is a micro pressure valve.
zzvp Nitrogen gas pressure reducing valve

ZZVP Nitrogen Gas Pressure Reducing Valve specification:
Type: Straight-through casting ball valve
Nominal diameter: DN15~100
Nominal pressure: PN16
Connection type: flange type PN16 convex surface
Body and bonnet material: WCB (SCPH2)
CF8(304)CF8M(316)
Internal material: CF8 (304) CF8M (316)
Applicable temperature: -40~230°C
Filling: V-type PTFE
Spool type: single seat plunger type spool
Flow characteristics: quick opening
Sealed version: soft seal
Type: film type
(100, 280 signal actuator)
Signal interface: internal thread M10×1
Ambient temperature: -40 to +70 °C
Valve function: Type B and Type K
Type B spool initial position is normally open, closed when differential pressure increases
K type spool initial position is normally closed, open when differential pressure increases


ZZVP Nitrogen Gas Pressure Reducing Valve Flow coefficient CV value and stroke:
DN(mm) 20     25      32 40     50     65     80    100   125    150   200    250    300
CV 7 11 20 30 48 75 120 190 300 480 760 1100 1750
Rated stroke
mm
8 8 10 10 14 20 20 25 40 40 50 60 70


ZZVP Nitrogen Gas Pressure Reducing Valve installation:


ZZYVP Nitrogen pressure regulator installation
1, ZZYVP nitrogen supply valve 2, pressure gauge 3, breathing valve 4, ZZVP nitrogen relief valve 5, feed 6, discharge
