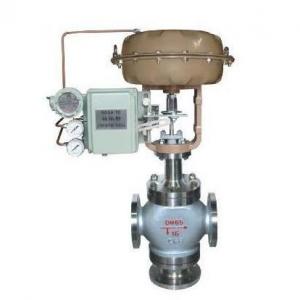

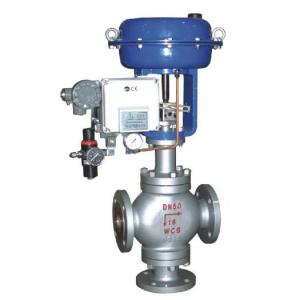

ZMAQ Mixing type 3 way control valve

ZMAQ Mixing type 3 way control valve Product introduction

　ZMAQ Mixing type 3 way control valve is dual spool upper and lower guide structure, ZMAQ Mixing type 3 way control valve is equipped with multi spring actuator, the flow direction is two into one (confluent), so as to achieve the fluid mixing heating or cooling effect, or fluid from a shunt, meet the requirements of different conditions. ZMAQ Mixing type 3 way control valve has the advantages of compact structure, in a light, sensitive action, small pressure drop loss, allowing the pressure high, new capacity is big, flow valve is accurate and convenient maintenance and so on, ZMAQ Mixing type 3 way control valve can be used in a variety of working conditions, temperature automatic control system and other industry control is especially suitable for the oil industry in the heat exchanger. ZMAQ Mixing type 3 way control valve has closed (divided) flow type, (points) flow high temperature type and other types of. Product nominal pressure level of a user PN1.6, 4, 6.4; the valve nominal diameter range of DN25~400; leakage class II grade, IV grade; flow is characteristic for linear and equal percentage. A variety of different specifications are available.

ZMAQ Mixing type 3 way control valve Materials:

Name	Texture of material
The valve body	ZG230-450、ZG0Cr18Ni9
Valve seat	0Cr18Ni9, 0Cr18Ni9+PTFE, 0Cr18Ni9+ division Chatterley
The valve stem	0Cr18Ni9、2Cr13
The push rod	0Cr18Ni9、2Cr13
Spring	60Si2Mn
Bellows	0Cr18Ni9
Corrugated diaphragm	Clip reinforced nylon fabric nitrile rubber
Film cover	A3、0Cr18Ni9
Shim	0Cr18Ni9, graphite spiral wound gasket (V6590), F4
Filler	PTFE, flexible graphite

ZMAQ Mixing type 3 way control valve technical parameters:

All diameter.	25	32	40	50	65	80	100	125	150	200	250	300	350	400
Seat diameter mm	25	32	40	50	65	80	100	125	150	200	250	300	350	400
Rated KV	8.5	13	21	34	53	85	135	210	340	535	800	1280	1960	2560
Nominal pressure（MPa）	1.6、2.5、4.0、6.4
Trip（mm）	16		25		40			60			100		130
The effective area of the film Ae （cm2）	280		350		560			900			1400
Signal range KPa	20-100、40-200、80-240
Air pressure MPa	0.1-0.4												0.4-0.7
The inherent flow characteristics	Linear, equal percentage, quick opening
The inherent adjustable ratio	30:1
The leakage class	III、IV
Flange size	According to JB/79. (2) _94, HG20592_97, GB, ANSI, JIB, DIN and other standards
Body material	WCB, 304, 316, WC6, nickel, titanium, Hastelloy, Monel etc.
Valve material	304, 316, 420, nickel, titanium, Hastelloy, Monel etc.
Working temperature ℃	-40~+230 ℃ (room temperature), +230~+450 ℃ (temperature), +450~+560 ℃, -40~-196 ℃ (high temperature) (low)
Series type	At room temperature, medium temperature, low temperature type. Bellows seal type, jacket type heat, regulating off type

ZMAQ Mixing type 3 way control valve performance:

Serial number	Project		The performance index
			Not with a locator	with a locator
1	basic error（%）		±5	±1
2	The return difference <（%）		3	1
3	The dead zone<（%）		3	0.4
4	Always point bias<（%）	The starting point（%）	±5	±1
		Finish（%）	±2.5
5	Rated stroke deviation <（%）		±2.5
6	Allowable leakage （1/h）		The rated flow coefficient deviation< (%)
7	The rated flow coefficient deviation<（%）		±10
8	The inherent flow characteristics		To meet the requirements specified in IEC534-1 and GB/T4213-92 slope deviation in

Note: This product performance accords with GB/T4213 - 2008, If you need other standard, you can contact us.
