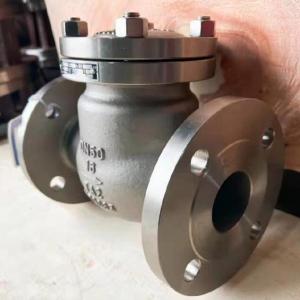

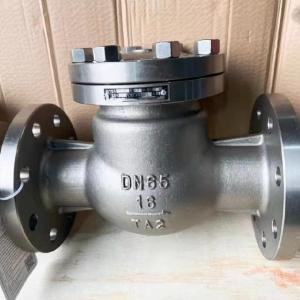

Titanium Swing Check Valve Manufacturer

Titanium Swing Check Valve Manufacturer Product introduction

　Titanium Swing Check Valve manufacturer, factory and supplier in China. Titanium Swing Check Valve material grade can be TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12, ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4. Titanium Swing Check Valve is widely used in chlor-alkali industry, soda industry, pharmaceutical industry, fertilizer industry, fine industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc.

Titanium Swing Check Valve Specification:

Body material: Tatanium alloy TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12, ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4.

Nominal diameter:1/2"~48"(DN15~DN1200)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-40℃~+310℃

Titanium Swing Check Valve Features:

1. Titanium Swing Check Valve not only good corrosion resistance, but also light weight, high mechanical strength.

2. Titanium Swing Check Valve in the atmosphere, fresh water, sea water, high temperature steam almost no corrosion.

3. Titanium Swing Check Valve in aqua regia, chlorine water, hypochlorous acid, wet chlorine and other media have a good corrosion resistance.

4. Titanium Swing Check Valve is also very resistant to corrosion in alkaline media.

5. Titanium Swing Check Valve has very strong chloride ion (CI) resistance and excellent chloride ion corrosion resistance.

6. The corrosion resistance of Titanium Swing Check Valve in organic acid depends on the size of reducing or oxidizing acid.

7. Corrosion resistance of titanium swing check valve in reducing acid depends on whether there is corrosion inhibitor in the medium.
