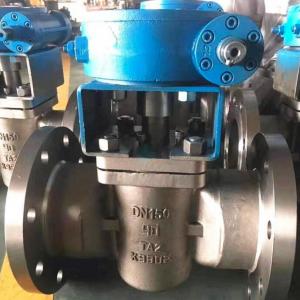

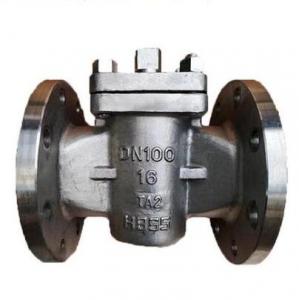

Titanium Plug Valve Factory Price Product introduction

 Titanium plug valve factory price in China for sale. Titanium plug valve manufacturer and supplier  produce titanium plug valves with lubricated or non-lubricated design for the process industries to handle liquids that contains slurry and sludge or liquids which are hazardous, corrosive ect. harsh working conditions with the advantage of deposit-free, anti-crystallization, anti-corrosion, and anti-high temperature and pressure.The most distinct property of Titanium plug valve is its outstanding resistance to corrosion, especially highly resistant to acids, aqua regia and moist chlorine in water.


Titanium Plug Valve Specification:

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

Titanium Plug Valve Main Material:

ZTA1、ZTA2、ZTA3、ZTA9、ZTA10、ZTC4

TA1、TA2、TA3、TA9、TA10、TC4

Titanium Gr2、Gr3、Gr5、Gr6、Gr7、Gr12

Titanium GrC2、GrC3、GrC5、GrC6、Ti-Pd7B、GrC12

Titanium GrF2、GrF3、GrF5、GrF6、GrF7、GrF12

Titanium Plug Valve Application:
Seawater Desalination: Titanium plug valve is almost non-corrosive in seawater, making long-term immersion possible.

Pulp and Paper: The pulp in the bleaching section contains a small amount of chloride ion, and the titanium plug valve bears excellent resistance to chloride-ion corrosion.

Smelting: Titanium plug valve boast the advantages of safety, reliability and long service life.

Aviation and Military: Titanium valves are of lightweight, high mechanical strength and virtually non-magnetic.

Packaging- Titanium plug valve packed in superior plywood boxes. Every valve is secured by a plastic cap to avoid any damage in transportation. This accumulated product is also packed in polythene lock bags to avoid any pollution.
