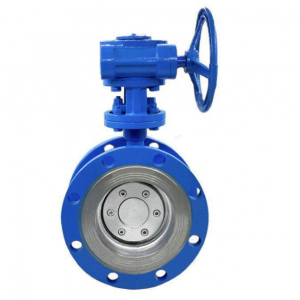

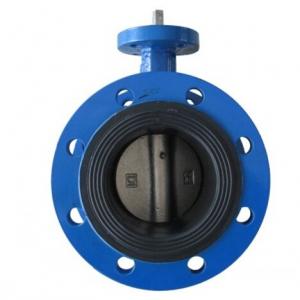

WCB Body butterfly valve manufacturer, factory and supplier. WCB Body butterfly valve can be concentric, double eccentric, triple eccentric design.No matter at low temperature and high temperature, WCB Body butterfly valvehas excellent sealing performance and corrosion resistance. With long life and so on, the strength is high, the overflow area is large, the flow resistance is small, WCB Body butterfly valve has the function of two-way sealing, WCB Body butterfly valve is not restricted by the flow direction of the medium, and is not subject to the space position. This butterfly valve can be installed in any direction.


WCB Body butterfly valveTechnical Specification
Normal Size Range: 2"-80"
Normal Pressure Rating: PN10~PN64, CLASS150~600
Material: WCB, CF8,CF8M,CF3,CF3M
Operation: Handwheel, Pneumatic, Electric
Temperature Range: -29°C~425°C


WCB Body butterfly valve Standards compliance
Design and Manufacture: GB/T12228, API609
Face to face(end to end): GB/T12221
Flanged connection: ANSI B16.5, GB/T 9113
Test and inspection: API 598, GB/T 13927
