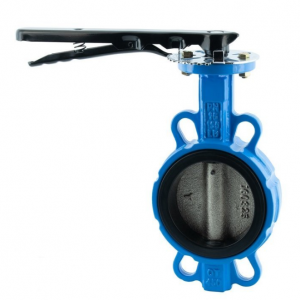

Single eccentric butterfly valve

Single eccentric butterfly valve Product introduction

Single eccentric butterfly valve manufacturer, factory and supplier. Single eccentric butterfly valve is concentric design with rubber lined seat. Single eccentric butterfly valve as a component used to cut off and control the flow of pipeline system, Single eccentric butterfly valve has been widely used in many fields, such as oil, chemical, metallurgical and hydroelectric fields. In the known butterfly valve technology, its sealing form mostly adopts the sealing structure, and the sealing material is rubber, polytetrafluoroethylene and so on.

Single eccentric butterfly valve Technical Specification
Normal Size Range: 2"-80"
Normal Pressure Rating: PN10~PN16, CLASS150
Material: GG25,GG40,WCB, CF8,CF8M,CF3,CF3M
Operation: Handwheel, Pneumatic, Electric
Temperature Range: -29°C~150°C

Single eccentric butterfly valve Standards compliance
Design and Manufacture: GB/T12228, API609
Face to face(end to end): GB/T12221
Flanged connection: ANSI B16.5, GB/T 9113
Test and inspection: API 598, GB/T 13927

Single eccentric butterfly valve Related Products
