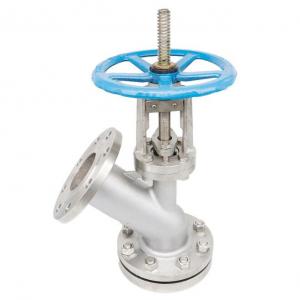

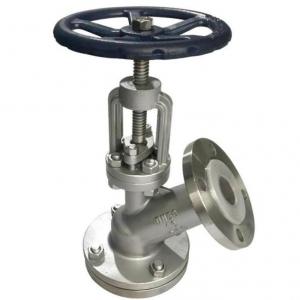

Y Type Reactor Bottom Discharge Valve China

Y Type Reactor Bottom Discharge Valve ChinaY Type Reactor Bottom Discharge Valve China
Y Type Reactor Bottom Discharge Valve China

Y Type Reactor Bottom Discharge Valve China Product introduction

 Y Type Reactor Bottom Discharge Valve China Manufacturer, factory and supplier. China Y Type Reactor Bottom Discharge Valve is mainly used for bottom discharge, discharge, sampling and no-dead zone shut-off operations of reactors, tanks and other containers. The bottom flange of the Y Type Reactor Bottom Discharge Valve is welded to the bottom of the tank and other containers, thus eliminating the residual phenomenon of process media usually at the outlet of the container.

According to the needs of the actual situation, the bottom structure is designed for the flat bottom,
Y Type Reactor Bottom Discharge Valve body is V-shaped, and the two working modes of lifting and lowering the valve disc are provided. The inner cavity of the valve body has a scour and corrosion-resistant sealing ring. At the moment of opening the valve, it can protect the valve body from being washed and corroded by the medium, and carry out special treatment on the sealing ring to make the surface hardness reach HRC56-62, which has the function of high wear resistance and corrosion resistance. The valve disc seal is surfacing cemented carbide on the cover when needed. And prevent scarring. At the same time, the design of short stroke valve disc is adopted.

Y Type Reactor Bottom Discharge Valve Specification:

  Pressure Rating   PN10-PN64,ANSI 150 # / 300 #
  Design  Upward / Downward
  Face to Face   BS 6755 or others
  End Connection   ANSI B16.50 or others
  M.O.C.  CS / SS304 / SS316 / WCB / CF8 / CF8M & Higher Alloys on request
  Option  Hand Wheel Or Pneumatic actuator Operated
  Operation Normal or Jacketed
  Size Range  40 mm to 300 mm


Y Type Reactor Bottom Discharge Valve Feature:

1. Y Type Reactor Bottom Discharge Valve is installed at the bottom of the container, reactor and storage tank for sampling, discharging, discharging and no dead zone.

2. Remove residue from the bottom of the container. The valve disc is mainly divided into rising type and falling type, that is, up type and down type.

3. The difference between the two types of pneumatic discharge valves is that: the valve flap of the upper valve can rise to discharge, and the valve flap of the lower valve can fall.

4. Y Type Reactor Bottom Discharge Valve can discharge materials, and can also be customized plunger structure according to the requirements of field conditions. Y Type Reactor Bottom Discharge Valveis  widely used in high viscosity liquids, containing.

5. Fibrous fluid, easy to crystallize fluid, easy to deposit fluid and particle containing fluid and other occasions, especially suitable for storage tanks, reactors.
